Example:SH-BJX-e-35x20x15/Φ20x14+Φx2/27

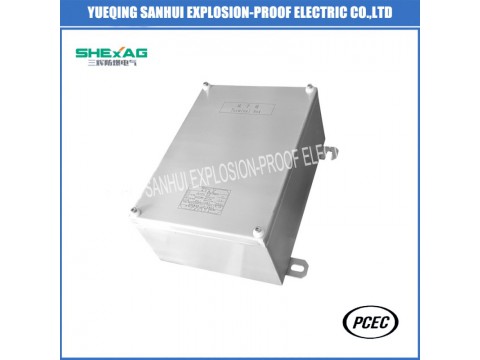

Noted:Increased safety junction box as follow,Size:350 x 200 x 150mm,with 14 holes of Φ20,2 holes of Φ40 and with 27 pieces of inside terminals.
Application
1. Hazardous:division 1&2
2. E xplosive gas atmosphere:II A,II B,II C
3. Indoor and outdoor(IP66)
Features
1. Materials:CS or SS,argon protected precision welding.
2. Surface treatment:coating or chemical treatment
3. Inlet and outlet:with explosion-proof cable gland
4. Inlet,outlet and size can be designed according to the requirement of customer
Main technical parameters
|
Rated voltage(V) |
Rated current(A) |
Ex-mark |
Degree of protection |
Erosion-proof class |
|
AC 110V/220V/380V/660V |
≤630A |
Exe II T6 Gb Ex tD IP66 T80℃ |
IP66 |
W, WF1, WF2 |
|
DC48V/24V/12V |
≤100A |
Noted:If you have special requirements for erosion-proof class,Indicate it when ordering.
