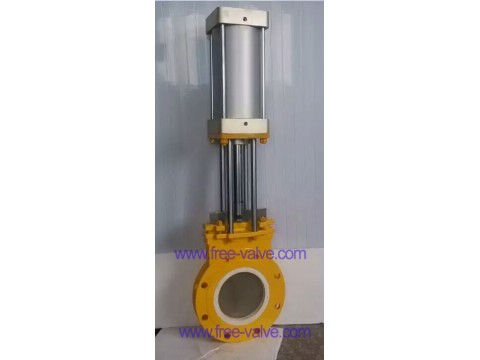

Pneumatic ceramic slurry gate valve,ceramic gate valve

Click image to view original image
Brand: FREE-VALVE
model: FRZ673TC
Color: blue,gray,material color
Origin: China
Price: 600.00USD/set
Min.Order: 1 set
Supply 200 set
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2019-12-11 14:46
Hits: 56725
Buy
Company Detail


Details

FREE-Valves Pneumatic ceramic slurry gate valves are known as slurry gate valves. Its have simple structure and can cut off medium which contains solid particles and fibers, but for some very hard particles or serious erosive mediums, general metal seated knife gate valves will be washed out easily, so ceramic knife gate valves are very suitable for those mediums containing  fibers and hard solid particles.

Features:

1) Short  length of structure,saving material ,lightweight ,easy to installsmall space occupation.

2) Seat is designed with single seat type to prevent sticking and accumulation of ash residue.

3) The sealing surface is made of structure ceramic with abrasion resistance and long service life.

4) Easy to realize the remote control or the local control with solenoid valve.

Technical Specification:

1) Size Range: NPS2~NPS24,DN50~DN600

2) Pressure Range: Class 150 /PN6 /PN10

3) Applicable Temperature.: 0~200

4) Connection Type: Flange , wafer

5) Sealing material: engineering ceramics

6) Body Material: WCB, CF8, CF8M, CF3M

7) Pressure test:GB/T13927, API598

8) Face to Face: GB/T12221, API609

9) Valve body : GB/T12224,ASME B16.34

Operating Mode: Pneumatic

Application:

FREE-Valves Pneumatic ceramic slurry gate valves are suitable for the conveying system with liquid-solid or gas -solid two-phrase medium , such as ash, mine residue and coal residue in iron and steel plant or ash conveying system of power plant , paper pulp in paper industry, sewage and slurry  in decontamination plant ,especially useful for the heavy medium system of coal mill.
