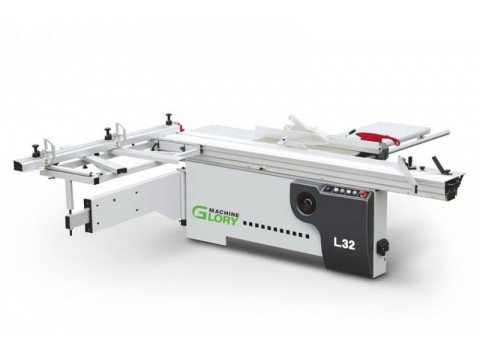

sliding table saw

Click image to view original image
Brand: glory machine
Model NO: R32A
Color: Iron Grey
Specification: 3200× 370mm
Price: 1000.00USD/set
Min.Order: 1 set
Supply 100 set
Delivery: Shipment within 20 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2018-08-08 17:07
Hits: 29977
Buy
Company Detail


Details
Product specifications

Dimension of sliding table 3200×370mm
Gross cut capacity 3200mm
Width of cut between saw blade and rip fence 1250mm
Saw blade diameter φ300mm(φ250-φ315)
Height of cut 80mm
Diameter of guide shaft spindle 55mm
Speed of main saw spindle 4000/6000rpm
Main spindle diameter φ30mm
Tilting saw blade 0-45°
Main motor 4KW(More options 5.5kw)
Scoring saw blade diameter φ120mm
Speed of scoring saw blade 8000r/min
Scoring spindle diameter φ20mm
Scoring motor 0.75kw
Net weight 685kg
weight 806kg
Overall dimensions 3250×3150×900mm
