Quick Information
- Brand Name:Zhonghui
- Place of Origin:China
Description
Brief description:

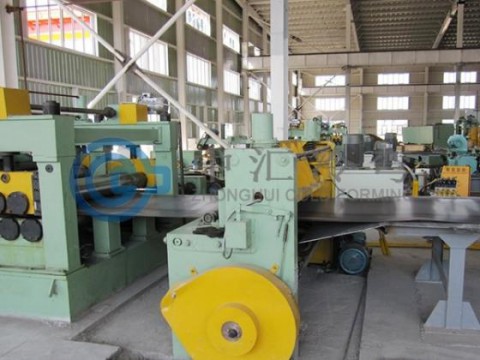

The slitting line is designed to shear hot & cold rolling steel coil of large width into sub-strips of desired width along the longitudinal direction then roll them into coils as the material of forming pipe and sectional steel and other profile.
The slitting line is used to match with cutting-into-length machine according to the different requirement of clients.
Main technical parameters：
| Model | Material of strip steel: carbon steel of σb≤580Mpa, σs≤350MPa and low alloy steel of ≤X80 | Cutting speed（m/min） | ||
| Width of raw material（mm） | Thickness of strip steel（mm） | Width of finished product（mm） | ||
| ZJ600 | 120~600 | 0.5~2.0 | 40~580 | 10~80 |
| ZJ800 | 120~800 | 0.7~3.5 | 40~750 | 10~80 |
| ZJ1300 | 400~1300 | 0.8~4.5 | 60~1250 | 10~60 |
| ZJ1600 | 600~1600 | 2.0~6.0 | 60~1550 | 10~60 |
| ZJ1800 | 900~1800 | 3.0~8.0 | 90~1750 | 10~60 |
| ZJ2000 | 1000~2000 | 6.0~16.0 | 90~1950 | 10~30 |
| ZJ2200 | 1000~2200 | 8.0~20.0 | 90~2150 | 10~20 |
Price
- Delivery Port :Tianjin
Packaging & Delivery
- Packing :By carton box or Wooden box according to different
- Delivery Lead Time :3-7 working days according to different quantities
- Supply Ability :100/sets per month
