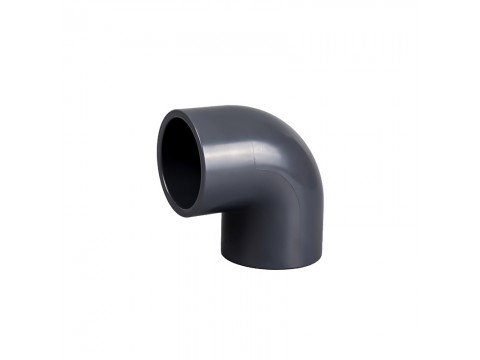

CPVC、UPVC、PVDF、PPH 90° Elbow
|
DN(mm) Noninal diameter |
DN(mm) Nominal outer diameter |
Figure size (mm) | |||
|
D |
d | L | Z | ||
|
15 |
20 |
26 |
20 |
28 |
16 |
|
20 |
25 |
32 |
25 |
34 |
20 |
|
25 |
32 |
40 |
32 |
41 |
22 |
|
32 |
40 |
50 |
40 |
49 |
27 |
|
40 |
50 |
61 |
50 |
60 |
31 |
|
50 |
63 |
75 |
63 |
76 |
38 |
|
65 |
75 |
88 |
75 |
83 |
44 |
|
80 |
90 |
105 |
90 |
97 |
51 |
|
100 |
110 |
127 |
110 |
117 |
61 |
|
125 |
140 |
160 |
140 |
150 |
75 |
|
150 |
160 |
185 |
160 |
172 |
90 |
|
200 |
225 |
253 |
225 |
230 |
110 |
|
250 |
280 |
310 |
280 |
280 |
140 |
|
300 |
315 |
350 |
315 |
340 |
150 |
|
350 |
355 |
395 |
355 |
367 |
182 |
|
400 |
400 |
433 |
400 |
413 |
205 |
|
*450 |
45 0 |
495 |
450 |
480 |
231 |
|
*500 |
500 |
540 |
500 |
535 |
256 |
|
*600 |
630 |
678 |
630 |
670 |
321 |
