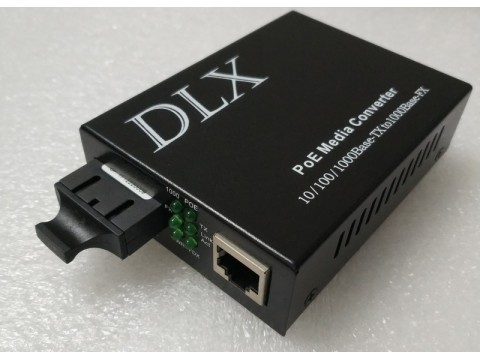

DLX-PFS01-FG series 10/100M/1000M Ethernet Fiber Switch is included one 1000M fiber optical port and one POE 10/100M/1000M Ethernet ports. It has the function of photoelectricity switchover between 1channel 10/100M/1000M Ethernet ports and 1000M optical port. Adopts single port full-power technology, and single port supports Max.30W and feeds enough power to Array IR CCTV cameras. Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it. Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices. Has smart POE auto-recognized system to protect devices from overflow current and over -voltage etc. Adopts Auto-standby mode and cable distance detection management to ensure the switch has excellent energy saving capability. Using imported original industrial components and Gold-plated PCB. All RJ45 ports adopt advanced Self-healing multi-stage lightning protection design, have high-level lightning, surge and ESD protection.
APPLICATIONS
● High-definition IP video surveillance and power supply
● High Way& Road surveillance system, Capture system
● Video-surveillance system of large factories and mines systems
● IP Network Multi-function system
● High Way & Toll Station Surveillance
● Public Security Surveillance
● Surveillance and cable TV system
● Intelligent traffic monitoring system
● High Quality Video Conference
● Broadcast and TV program transmission
● Long-distance multimedia teaching
● Industrial Closed Circuit Television Surveillance
FEATURES
● Adopts import industry PSE chip and Taiwan YDS transformer
● Single port full-power technology, and single port supports Max.30W
● Supports IEEE802.3AF and IEEE802.3AT protocol, Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it
● Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices
● Supports Auto-standby mode and cable distance detection management, if no devices been connected, then auto-standby to save energy, if cable distance less than 10meters,then will use Lower transmission power
● Smart POE auto-recognized system to protect devices from overflow current and over -voltage etc.
● 2K MAC address
● 1/2/3/6 lines or 4/5/7/8 lines power supply optional, supports all PD devices
● Anti-lightning and ESD protection for all Ethernet ports, power ports.
● Immersion gold PCB board, Industry grade components
● Multi-services Flexible Configuration on the Same Platform
● Auto-negotiate to NIC/HUB and MDI/MDI-X
● Support VLAN Network isolation and BSTM broadcast storm-control setting
● Indicators for Power Supply, Ethernet etc.
● Supports line speed switching of all ports and in 64~1536 frame length can reach line speed
● Standard: Full-duplex adopts IEEE 802.3x standard, Half-duplex adopts Back pressure standard
● Wall mounted installation
● Transmission distance: 2km(multi-mode),20km,40km,60km,80KM,100km,120kmoptional(Single-mode)
SPECIFICATIONS
|
wavelength |
MM:850/1310nm, SM:1310/1550nm, DFB:1260~1610nm |
|
Fiber power |
0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm |
|
Receiving Sensitivity |
≤-26dBm |
|
Bandwidth of Single wavelength |
1.25G |
|
Transmission distance |
500M(MM),20km/40km/60km/80km/100km/120km(SM) |
|
Max. optic Budget |
15dbm/20dbm/25dbm/30dbm |
|
Fiber connector |
SC |
|
Ethernet port |
RJ45,10/100M/1000M auto-negotiation, Full-duplex/Half-duplex |
|
Standard |
IEEE 802.3i 10baseT；IEEE 802.3u 100baseTX；IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI,IEEE 802.3af/at 100base-TX/FX |
|
Control |
IEE802.3X/IEE802.3Z and Full-duplex/Half-duplex |
|
Switching |
Back-plane:1.0Gbps ,Transfer Rate:14,880pps/14,880pps for everyEthernetPort |
|
Temperature |
Operation:-20℃~+70℃, Storage:-40℃~+80℃ |
|
Humidity |
Operation: 10%—90%, Storage: 5%—95% |
|
Dimension |
95(L) x 75(W) x 28(H)mm |
|
Power supply |
48V DC |
