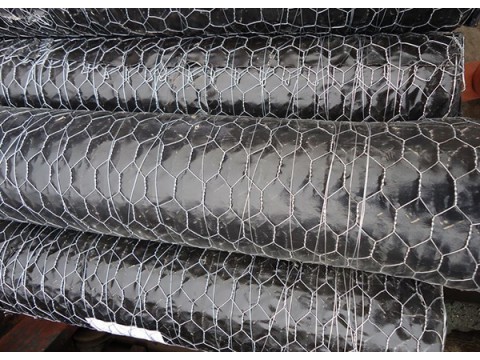

Hexagonal Wire Mesh
Specification
1. The hexagonal wire mesh is a wire mesh made of metal wire mesh, which is based on the size of hexagonal wire. If the metal wire hexagonal metal wire, the use of wire diameter of 0.3mm to 2.0mm metal wire, if it is PVC coated metal wire woven six angle network, then the use of external diameter of 2.6mm to PVC 0.8mm (metal) line. A hexagonal screw, the edge of the box side wire line can be made into unilateral and bilateral, movable.
2. Weaving and characteristcs
Reverse twisted, normal twisted, bidirectional twists galvanized after weaving or galvanizing. Before weaving, it is divided to electroplate galvanized. Hot-dipped, plastic-coating, stainless steel. PVC coating, etc. It has the characteristics of corrosion resisting and oxidation-resisting.
3. Uses
Used in building, oil, chemical industry, breed, plant protect. Food processings reinforce, guard and heat-keeping for example, make net cast, ston cage, insulated net, wall boiler cover, poultry fence, chicken wire mesh, rabbit fence, ect.
4. Weaving method
Hexagonal Wire Netting Electro Galvanized before Weaving
Hexagonal Wire Netting Electro Galvanized After Weaving
Hexagonal Wire Netting Hot Dipped Galvanized before Weaving
Hexagonal Wire Netting Hot Dipped Galvanized after Weaving
Hexagonal Wire Netting PVC Coated Before or After Weaving
Application
used for feeding chickens, ducks, geese, rabbit and zoo fence, machinery and equipment protection, highway guardrail, sports venues fence, the road green belt protection net. The screen in the production of a box shaped containers, cages filled with rocks, etc., can be used to protect and support the seawall, slope, Luqiao, reservoirs and other civil engineering, is a good material for flood control and flood.
| Specification | Wire Diameter(BWG) | Remark |
| 1.5CM1/2" | 22 | Max. roll width: 2m; single or double edge |
| 24 | ||
| 2CM3/4" | 20 | Max. roll width: 2m; single or double edge |
| 22 | ||
| 24 | ||
| 1.8CM5/8" | 21 | Max. roll width: 4m; single or double edge |
| 23 | ||
| 25 | ||
| 2.5CM1" | 19 | Max. roll width: 2m; straight or reverse twisted |
| 21 | ||
| 23 | ||
| 3CM1.25" | 19 | Max. roll width: 2m; straight or reverse twisted |
| 21 | ||
| 4CM1.5" | 18 | Max. roll width: 2m |
| 20 | ||
| 22 | ||
| 5CM2" | 18 | Max. roll width: 2m |
| 20 | ||
| 22 | ||
| Weaving Type | Weaving before electro galvanizing; weaving before hot-dip galvanizing; weaving after galvanizing | |
| Remark | Hexagonal mesh (green, white or grey); enamelled hexagonal mesh (green) | |
| Gabion | |||
| Mesh Open (mm) | Wire Diameter (mm) | Wire Diameter(PVC)/ Inner/Outer(mm) | Stria Twist |
| 60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
