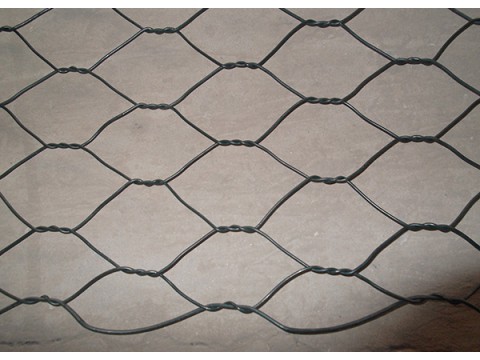

Gabion Mesh
Description
Application: Fence Mesh, Protecting Mesh, Construction Wire Mesh, Screen, Decorative Mesh, Window Curtain
Material: Galvanized Wire or PVC Coated Wire
Color: Light Green, Dark Green, Silver
Length: 1-4m Width: 1m Hight: 0.3-1m Wire Gauge: 2.0-4.0mm
Hole Size: 60*80,80*100,80*120mm,100*120mm
Gabions sizes: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m. Custom orders available.
Transport Package: in Pallet or in Bulk
Specification
| Length(M) | Width(M) | Height(M) | Diaphragm(Unit) | Volume(㎡) | Tolerance |
| 2.00 | 1 | 0.30 | 1 | 0.60 |
length±5% width±5% height±5% |
| 30.. | 1 | 0.30 | 2 | 0.90 | |
| 4.00 | 1 | 0.30 | 3 | 1.20 | |
| 2.00 | 1 | 0.50 | 1 | 1.00 | |
| 3.00 | 1 | 0.50 | 2 | 1.50 | |
| 4.00 | 1 | 0.50 | 3 | 2.00 | |
| 1.00 | 1 | 1.00 | 0 | 1.00 | |
| 1.50 | 1 | 1.00 | 0 | 1.50 | |
| 2.00 | 1 | 1.00 | 1 | 2.00 | |
| 3.00 | 1 | 1.00 | 2 | 3.00 | |
| 4.00 | 1 | 1.00 | 3 | 4.00 |
Features
Economic.
Just fill the stone into the gabions and seal it.
Simple installation.
No special technology needed.Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing.
Mixed to form a integrity with the natural environment.Good permeation can prevent the damage by hydrostatic.
Less transport freight. It can be folded together for transport and further installation.
Applications
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Bridge Protection
Water and soil protection
Coast protection
Seaport engineering
Strengthening structure of soil
Protection of road
Production process
