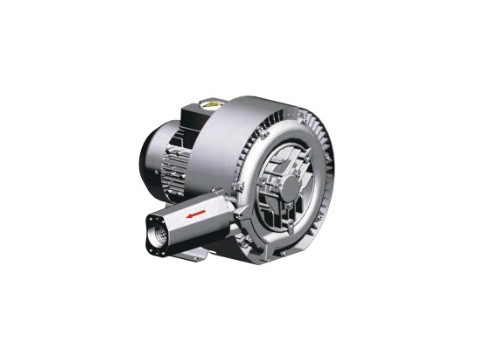

 side channel blowers/ side channel vacuum pump


Introductions

With high inlet volume flow up to 2500 m3/h and a differential pressure up to 780mbar,our low noise G series blowers have earned their reputation and convinced thousands of customers all over the world.

They are reliable, low maintenance ,durable ,are the first choice for many applications in mechanical engineering.

The performance of 2BH side channel blower can be increased considerably when use a frequency converter.

The 2BH series side channel blowers can be used without further testing all over the world.

Advantage


1. 100% oil free, Insulation class is F, Protection class is IP55.
2. Dual frequency 50HZ and 60HZ
3. Made of die cast aluminum ADC12.
4. Dual usage: compressor and vacuum (suction and blow).
5. Virtually maintenance free, with sealed long life bearings.
6. Low noise
7. Explosion proof motor is available for all the blowers.

8. Anti-corrosion blower is available for all the models.
9. We could supply IE2 & IE3 motor for the blower.

10.Almost completely maintenance free
11. Easy installation
12. Simple and minimal maintenance
13. Suitable to environment protection

14. Small dimensions

MODEL

MOTOR

MAX. AIRFLOW

MAX. VACUUM

MAX. PRESSURE

SOUND PRESSURE LEVEL



FRE-   QUENCY

RATED

WEIBHT

VOLTABE

CURRENT

POWER



HZ

V

A

KW

m³/h

mbar

mbar

dB(A)

KB

2BH 210-H06

50

200-240△/345-415Y

2.1△/1.2Y

0.25

80

-100

100

53

11

60

220-275△/380-480Y

2.0△/1.15Y

0.29

98

-100

100

56
