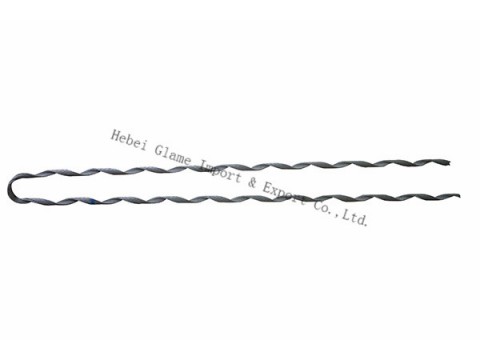

Dead End Clamp

Click image to view original image
Brand: Glame
Price: 0.50USD/Piece
Min.Order: 1 Piece
Supply 8000000 Piece
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2019-06-12 17:42
Hits: 48073
Buy
Company Detail


Details

N1


Component

Thimble,Amor rods


Characteristic

1. Stress is distributed equally, without stress focus. It can protect AAAC/AAC cables very well.

2. Under the condition of not exceeding the intensity of cable's side pressure, it has higher grip power for the cable, and can support higher tensile force.

3. Simple installation, No special tools needed, and one person can finish the whole installation.


Select Chart

Model no. GB/T1179-1983 Conductor Dia Length(mm) Weight(kg) Color code
AAAC/AAC Min(mm) Max(mm)
NL-16/LJ 16 4.62 5.16 406 0.1 Blue
NL-25/LJ 25 5.80 6.53 444 0.1 Orange
NL-35/LJ 35 7.35 8.26 622 0.2 Red
NL-50/LJ 50 8.27 9.25 685 0.2 Green
NL-70/LJ 70 10.40 11.68 736 0.4 Blue
NL-95/LJ 95 11.69 13.11 800 0.4 Orange
NL-120/LJ 120 13.12 14.66 876 0.6 Red
NL-150/LJ 150 14.67 16.59 889 0.8 Black
NL-185/LJ 185 16.60 18.77 1016 1.1 Green
NL-210/LJ 210 16.60 18.77 1016 1.1 Green
NL-240/LJ 240 18.78 21.26 1155 1.7 Orange
NL-300/LJ 300 21.27 24.05 1270 2.3 Blue
NL-400/LJ 400 24.06 27.20 1422 3 Brown
NL-500/LJ 500 27.21 30.78 1651 4.9 Orange
