Description

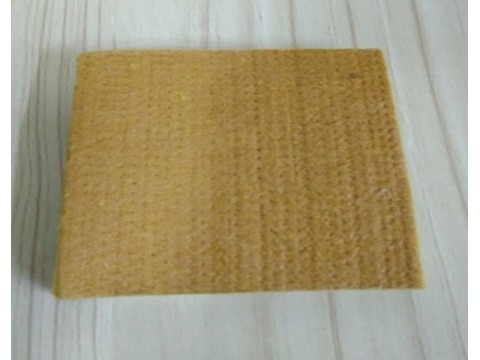

PBO felt pad is made of high temperature fiber PBO + Kevlar fiber + high temperature fabric.Considering the discharge port’s temperature is very high,and will have high density requirements,so the PBO block will be involved in a middle layer of high temperature fabric, so that Acupuncture will be better,each layer of cotton to better stab together, finished product density will increase. In general, pure PBO felt blocks (made of 100% PBO fibers) are more suitable for aluminum extrusion machines with double-sided discharge ports.
Specification
Color:Brown+Yellow
Material:PBO（surface）+Para aramid（In layer）+ Para aramid fabric
Temperature Resistance:600℃（<10min）＆550℃(Long time)
Length:100mm～25000mm
Width:20mm～1700mm
Total Thickness:5mm～15mm
PBO Thickness:2mm～8mm
Hard Degree:by resin and hard treatment
Application
Applied to extrusion machine’s run out table to replace the graphite material
Aluminium extrusion press exit, especially for thos demanding profiles
As the substitute for graphite slats, 600℃ PBO Pad is mainly used on the very beginning of the extruders – press spout, avoiding scratches and dark marks caused by graphite. It is especially suitable for those demanding extruded profiles.
Advantage
1.Heat resistant up to 600℃
2.No elongation under high tension and heavy load
3.No seam, splice or joints: no breaks due to weak zone,High density structure
4.Smooth and even belt surface: scratch-free extrusions
5.Excellent belt tracking on the cooling table
6.Low heat conductivity and high density with good wear resistance and impact resistance property under heavy conditions
