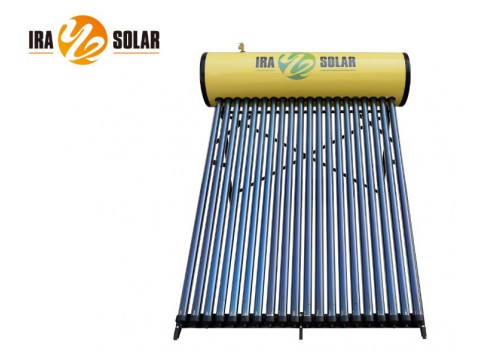

Click image to view original image
Material of out tank: 0.31mm thickness color steel/ fluorine carbon steel
Material of inner tank: Food grade 1.0 mm thickness SUS304 stainless steel
Tank insulating layer: 50mm thickness, 45kg/m3 high-density polyurethane foamed
Inlet and outlet hole: Female G 3/4
Max pressure: 0.9Mpa
Solar collector tube: 3.3 Borosilicate glass with Al-SS/Cu coating 58x1,800mm with heat pipe
Thickness of glass tube: 1.6mm
Vacuum tube tightness: P≤0.005 Pa
Absorption: as=0.93-0.96(AM1.5)
Emission ratio: εh=0.04-0.06(80C±5C)
Idle sunning property parameters: Y=220~260m2.C/KW
Average heat loss coefficient: ULT=0.6~0.7W/(m2.C)
Bracket: 1.2mm thickness of galvanized steel material
Structure of tank: 6 holes for PT valve,water inlet and outlet,Mag Rod
Welding: Argon arc welding
Fastening pieces: Made of stainless steel screw
Absorber area: 1.874m2
Heat pipe size: Dia14mm x 70mm length condenser,170cm length in total
Heat pipe material: TU1 copper
Heat pipe power: >120W/pcs
Temperature tolerance: from -35C to 250C
Tube quantity: 20 tubes
Other Tube quantity: 8/10/12/15/18/20/24/30/36 tubes
Tank capacity: 200L
Other Tank capacity: 80/100/120/150/180/200/240/300/360L
Heat pipe pressurized solar water heater features:
1.Adopts the best conduction performance metal- heat pipe (copper).
2.Can be used all year round in the cold climate.
3.High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized solar water heater tank rapidly.
4.The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa.
5.No water in the tube, one tube broken don't influence the system working.
6.The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage.
7.Dual-purpose brackets for both flat and inclined roof.
8.The system is pressurized, it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out.
Pressurized solar water heater working principle:
1.The pressurized solar water heater tank has no exhaust hole, therefore, it must bear the pressure came from tap water. The hot water comes out because of water pressure.
2.Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized solar water heater tank. In this case, the water inside the tank becomes hot.
3.No water in the heat pipe makes the whole system could bear pressure.
