Product introduction

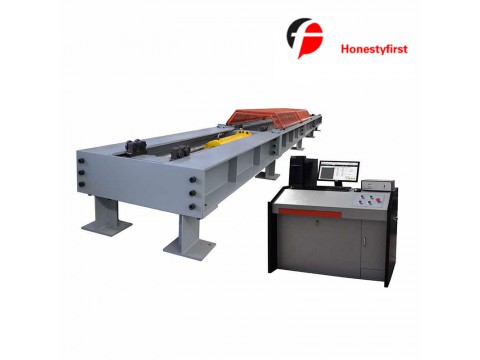

This machine is mainly used for testing long specimen like wire and cable, conveyor belt, safety rope, safety bell , chain and so on. And it also complete tension, compression and bending test.
Mainly components: host frame, oil resource control cabinet, computer measurement and control system. The computer automatically control the test progress. The host adopts frame structure, double acting cylinder applied test force, load sensor measuring force, pull type encoder measuring displacement. The computer real-time display the test force and testing curve and automatically processing the test data. The specimen clamping method adopts the bolt type structure.
Technical specification
|
Max. Test force ( KN ) |
300 / 500 / 1000 / 3000 / 5000 / 10000 |
|
Accuracy of testing force |
±1% of setting force |
|
Piston stroke ( mm ) |
1000 ( can be customized ) |
|
Measuring range |
2%-100%FS |
|
Test space ( mm ) |
6000 ( can be customized ) |
|
Adjusting way of test space |
Pushing by hydraulic cylinder; Fixed by bolt |
|
Test speed |
0-120mm/min( can be customized ) |
|
Power supply |
Three phases AC 380V 50Hz |
