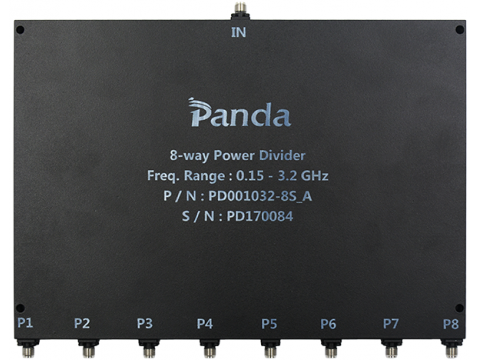

0.15 to 3.2 GHz 8-way Power Divider Panda Microwave
Click image to view original image
Brand: Panda Microwave
Price: Negotiable
Min.Order:
Supply
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2019-07-04 12:23
Hits: 47298
Enquiry
Company Detail


Details

Description Minimum Typical Maximum Units Condition
Freq. Range 0.15 3.2 GHz
Nominal Splitter Loss 9.0 dB
Insertion Loss 3.5 dB Excluding Nominal Splitter Loss 9.0dB
Input VSWR 1.6
Output VSWR 1.4
Amplitude Balance 0.6 dB #1
Phase Balance 8 deg #2
Isolation 16 dB
Forward Power 30 W CW
Reverse Power 1 W CW
Peak Power 0.5 KW P-P
Impedance 50 Ohms
Operating Temp. -45 +85 ℃ Relative Humidity 5 to 95%
Additional Conditions Isolation : 16@0.15-0.2GHz , 18@0.2-3GHz

0.15 to 3.2 GHz 8-way Power Divider Panda Microwave
