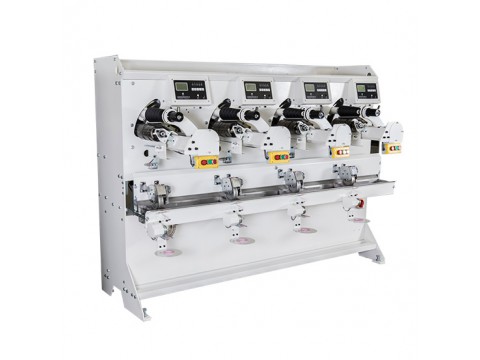

DM0604 High Speed Winding Machine
Click image to view original image
Price: Negotiable
Min.Order:
Supply
Delivery: Shipment within 3 days since the date of payment
Address: United_States
Valid until: Never Expire
Updated on: 2019-07-26 10:39
Hits: 109962
Enquiry
Company Detail


Details

DM0604 high speed winding machine is applicable for winding sewing thread , embroidery thread , nylon thread ,etc. This machine features availability of computer-based separate control of each single spindle , a frequency –change slotted spool yarn guide device , an electro-magnetic tension force control system , a pump-based cycling –type oiling device , etc. characteristics of a good shape formation , high efficiency , easy operation , assured safety and reliability and broad applicability , etc.. Please don’t hesitant to contact us for more of your questions and we’ll offer the competitive price with good quality to you!



Computer yarn-length measurement.

  1. Yarn length measured by computer, accuracy +1%.
  2. Yarn speed adjustable, which from 400 to 1,000 meter/per minute.

Drum thread-guidance system

  1. High speed, low noise drum.
  2. Drum with special hardened polish treatment, smooth & wear resist.

Automatic lubrications system.

  1. Threads are being uniform lubricate, thanks to the constant yarn speed, the

oiling roller speed is adjustable.

  1. Release the tension from beginning to the end; it makes the winded package good appearances
  2. LED display easy operation.

Circulating oil device.

  1. Keep always the full level of oil to each spindle.
  2. Big-scale return oil trough and oil fender to filter without pollution and oil waste.
  3. One oil filter is devoiced for every oil wheel to reduce the oil slinging out.
  4. One oil tank can supply for the use of 24 spindles.
  5. Detachable filter, easy to clean.



Specification:

Model

DM0604-A



DM0604-Y

Shape

Cone type



Horn type

No of spindles

4



4

Cone for each spindle

1or 2



1or 2

Tube angle

0°-2°20′



2°20′-5°57′

Max. winding speed

800mtrs/min

Max. winding-up Dia.

115mm

Measurement(M^3)

212-103*163MM

Pattern round number

3-4

Full spool length

0-60000m

Winding linear speed

200-1000m/min

Oil wheel speed ratio

30-2000

Winding initial tension

0-100%

Winding end tension

0-100%

Yarn detector state

0.0-9999second

Empty spool position confirmation

Computer test value

Fixed block position confirmation

Compute test value

Motor power

1.5KW

Machines measurement

2.12×1.02×163m ( L×W×H )

Net Weight

600KG

Gross Weight

700KG

Length correction coefficient

0.800-1.200

We could make special type according to the customer’s request.
