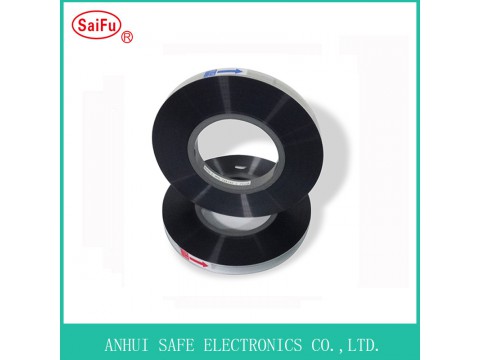

Metallzed Polyester Film

Click image to view original image
Brand: CSF
Thickness: 1.9-12um
Margin Value: 0.4mm 1mm 1.5mm 2mm 2.5mm
Production Capacity: 150 Tons Per Month
Price: 6.00USD/kg
Min.Order: 1 kg
Supply
Delivery: Shipment within 7 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2019-08-16 17:22
Hits: 43607
Enquiry
Company Detail


Details
*Product Description*
1.We mainly offer finished capacitor film: Aluminum/Zinc metallized film with reinforced edgefor capacitors used.
2.We can supply you metallized polyester/Polypropylene Film for capacitors(MPET/MPP film) .
3. We also can offer you Capacitor Polypropylene Rough film type RPP/RRPP.
Technical specifications
Model  MPET(metallized Polyester Film)
Material  PET
Hardness  Soft
Transparency  Opaque
Processing Type  Multiple Extrusion
Thickness  1.9-12um
Width  4.5-130mm
Density  0.905±0.005 g/cm3
MOQ  1 kilogram
Margin Value  0.4mm 1mm 1.5mm 2mm 2.5mm
Production Capacity  120 Tons Per Month
Types of Matallized Layer  Al/Zn metallized Film, Al Metllized Film
Size  Available on Request (Customized metallized Film)
*Types of Matallized Layer: Slope metallized Film,High Square Resistance Film,Single-Sided Margin,Al/Zn Heavy edge Film(Single Sided),Double-Sided And Central Margin Film,Both Sides metallized Film, Pattem Film Segmented+T Margin,Pattem Film T Margin.
*Dimensions(mm)*
Item Thickness
(um)
Width(mm) Margin Value(mm) ID(mm) OD(mm)
metallized Polypropylene Film 2.0,2.2,2.3,2.4,2.8,2.9,3,4,5,6,7,
8,9,10,12
14 ,17.5,21,26,30,35,
37.5,40,45,50,55,60,
65,70,75,80,85,90,
95,100,115,120,125,130
3.0, 2.5 , 2.0, 1.5,1.0 75 180,240,
320
*Note:Other specifications,size,terminal outside table and price are negotiable.
*Application*
Applied to capacitors for power system, refrigerators and air conditioners.

*Specifications of metallized film*
*Cores:
Material:Plastic
Width:Film Slit Width±0.3mm
Inner Diameter:75mm +1.0mm/-0.5mm

*Packaging & Delivery*
Packaging: Pallets
Packaging Details: Vacuum Aluminum Package (metallized Film Export Standard Carton)
Delivery Detail: 7~10 days after payment
Port: Shanghai or Ningbo

There is no best product, only the most suitable products!
