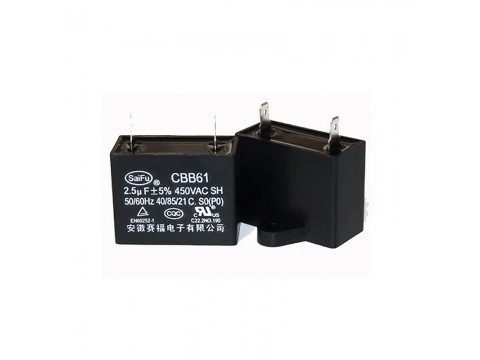

CBB61 Capacitor uses metallized aluminum zinc film with thickened edges as electrode and medium.
This film is wound by winding machine and put into aluminum shell. Then, the shell is filled with castor oil with high purity to keep it in a vacuum state, and the product can resist high temperature.
This product has better performance and long survice life. This product also uses the second generation machine explosion-proof design as an explosion-proof method ,thus the performance of the product is greatly guaranteed and improved.
| Technical Specifications | |
| Model NO. | CBB61 Capacitor |
| Type | Fan Startup Capacitor |
| Structure | Single Capacitor |
| Manufacturing Material | Polypropylene |
| Electrolyte | Polypropylene Film |
| Reference Standards | GB/T 3667.1(IEC60252-1) |
| Climatic category | 40/70/21,40/85/21 |
| Class of operation | Class B(10000h) Class C(3000h) |
| Class of safety production | S0/S3 |
| Voltage range | 220VAC 370VAC 440VAC 450VAC |
| Capacitance range | 1~35UF |
| Capacitance tolerance | ±5%,±10%,±15% |
| Dissipation factor | 20*10-4(100Hz,20ºC) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
| Insulation Resistance | ≥3000s(100Hz,20ºC,1min) |
| Altitude | ≤2000m |
| Remain voltage when put into operation | No more than 10% of rated voltage |
| Maximum allowed voltage | No more than 1.1 times rated voltage |
| Maximum allowed current | No more than 1.3 times rated current |
| Package Type | Export Standard Carton for CBB61 Capacitor |
| Production Capacity | 3500,000PCS/Month |
| MOQ | 1 PCS |
| Size | Negotiable |
*Appearance & Application*
Installation Type: Surface Mount
Shape: Squareness
Capacitor Case: Plastic Case
Application: CBB61 Capacitor widely applied to the starting and running of AC single-plase motors at 50Hz/60Hz frequency power, such as air conditioning fans, electric fans, fans exhaust fans.
*Packing&Delivery*
Packing: Export Standard Carton Packing for Capacitors
Delivery Detail: 7~10 days after payment
Port: Shanghai or Ningbo
