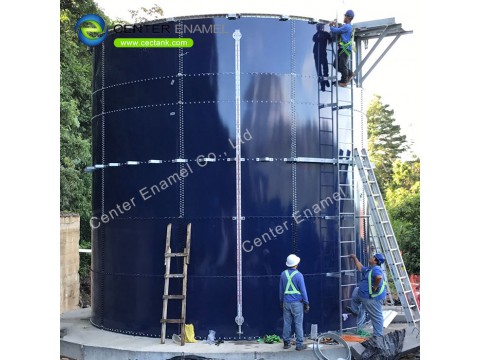

Introduction of bolted steel Rainwater Collection Tanks
This bolted steel rainwater collection tanks our company produce is also called “ Glass-Fused-to-Steel tanks ” process involves the high-temperature fusion of glass to steel at approximately 850°C. The fusion of glass and steel provide a product with an inert, durable finish. These two materials are fused together to combine the strength and flexibility of steel with the high corrosion resistance of glass.
bolted steel rainwater collection tanks are made of sheets that are bolted
together, and water tightness is provided by a highly resistant silicone or
polyurethane mastic sealant applied between the sheets. It is a competitive,
long-term technical solution for process water and wastewater storage.
Rainwater Collection Tanks are also known as rain tanks, rainwater harvesting tanks, and rainwater storage tanks. Rainwater tanks are the ideal way to supplement your water supply, especially during times of water use restriction, dry conditions, or contaminated water supplies.
Specification of Rainwater Collection Tanks
Coating Color: dark green, white, blue, color can be customized
Coating Thickness: 0.25~0.40mm, double coating
Acid and alkalinity: Standard sheet PH: 3~11
Proof: Special sheet PH: 1~14
Adhesion: 3,450 N / cm
Elastic: Same as steel sheet, around 500 Kn /mm
Hardness: 6.0( Mohs )
Service life: >30Years
Holiday test: >1500v
Easy to clean: Smooth, glossy, inert, nonadhesive
Corrosion resistance: Excellent, suitable for wastewater, saltwater, seawater,high-sulfur crude oil, salt fox, organic and inorganic compounds
about Us
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
