1-Hydroxy Ethylidene-1,1-Diphosphonic Acid (HEDP) CAS No. 2809-21-4

Click image to view original image
Price: Negotiable
Min.Order:
Supply
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2021-03-25 18:10
Hits: 98325
Enquiry
Company Detail


Details

1-Hydroxy Ethylidene-1,1-Diphosphonic Acid
(HEDP)


CAS No. 2809-21-4

Molecular Formula: C2H8O7P2
Molecular weight: 206.02
Structural Formula


Properties:

HEDP is an organophosphoric acid corrosion inhibitor. It can chelate with Fe, Cu, and Zn ions to form
stable chelating compounds. It can dissolve the oxidized materials on these metals' surfaces. It
shows excellent scale and corrosion inhibition effects under temperature 250ºC.


HEDP has good chemical stability under high pH value, hard to be hydrolyzed, and hard to be

decomposed under ordinary light and heat conditions. Its acid/alkali and chlorine oxidation
tolerance are better than that of other organophosphoric acids (salt).


HEDP can react with metal ions in water system to form hexa-element chelating complex, with

calcium ion in particular. Therefore, it has good antiscale and visible threshold effects. When built
together with other water treatment chemicals, it shows good synergistic effects.
Solid HEDP is crystal powder, suitable for usage in winter and freezing districts. Due to its high
purity, it can be used as cleaning agent in electronic fields and as additives in daily chemicals.

Usage:

HEDP is used as scale and corrosion inhibition, often build with polycarboxylic acid, in circulating
cool water system, oil field and low-pressure boilers in fields such as electric power, chemical
industry, metallurgy, fertilizer, etc. In light woven industry, HEDP is used as detergent for metal
and nonmetal. In dyeing industry, it is used as peroxide stabilizer and dye-fixing agent; In non-
cyanide electroplating, it is used as chelating agent.
Package and Storage:

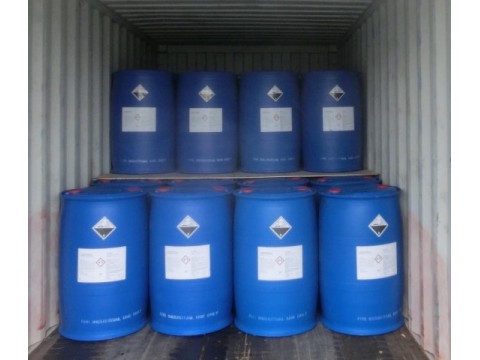

Liquid:200L plastic drum, IBC(1000L), customers' requirement.
Solid: 25kg/bag, customers' requirement.
Storage for ten months in room shady and dry place.
Safety Protection:
Acidity, Avoid contact with eye and skin, once contacted, flush with water.

Specification:

Items

Index

Appearance

Clear, Colorless to pale yellow aqueous solution

White crystal powder

Active content (HEDP) %

58.0-62.0

90.0min

Phosphorous acid (as PO33- ) %

1.0 max

0.8 max

Phosphoric acid (as PO43- ) %

0.6 max

0.5 max

Chloride (as Cl- ) ppm

100.0 max

100.0max

pH (1% solution)

2.0 max

2.0 max

Density (20) g/cm3

1.43-1.47

-

Fe, mg/L

10.0 max

5.0 max

Colour APHA (Hazen)

30.0 max

-

Acetic acid %

0.5 max

Ca sequestration (mg CaCO3/g )

500.0 min
