Feature:
1 Outer bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.
2 Adopts PID temperature controller for more accurate temperature adjustment.
3 Adopts PLC control system, touch screen color monitor device, machine is very easy to operate.
4 It can make inner and outer bag in same time automatically, which would highly improve the working efficiency.
5 The process of bag making measuring, filling, sealing, cutting, logo positioning, counting can be finished automatically.
6 All parts in direct contact with products are made of SUS304 stainless steel, ensuring reliable products output conforming to GMP standard.
7 Some parts of the cylinder are imported, ensuring the accuracy and stability of performance.
8 Adopts automatic conveyor system.
9 Machine reserved a connector to link with Nitrogen gas generator so that it can flush the nitrogen into bag to extend product shelf life.
10 Optional devices: Date code printer, nitrogen gas generator, etc.
Standard Technical data:
Type:Drip Coffee Packing Machine Series
Product model: H19D

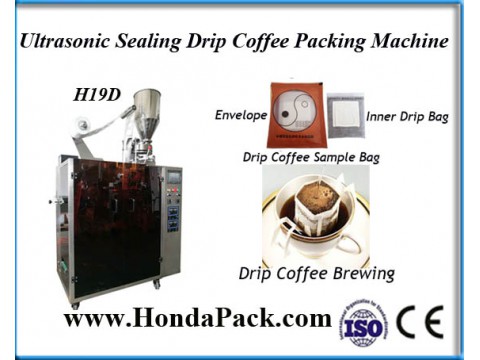

Product name: Ultrasonic Drip Coffee Inner and Outer Bag Packing Machine
Bag type: 3 side sealing
Outer Bag size: L:85~120mm,W:75~100mm (Film width 200mm, Bag size: 120*100mm)
Inner Bag size: L:50~75mm, W:50~90mm (Filter paper width 180mm, Bag size: 90*75mm)
Packing speed: 40~70 bags/min
Filling range: 5~15g; accuracy:≦±0.1g/bag
Measuring: Volumetric cup
Inner Packing material Filter paper; Nylon filter mesh
Outer packing material Kraft paper/aluminum coating; PE/aluminum coating; PE film
Ultrasonic device: 2 Sets
Sealing method: Ultrasonic sealing and cutting for inner bag; Outer Bag by heat Sealing.
Power: Single phase, 220V, 50HZ, 1.5KW
Air supply: ≧0.6Mpa (Can be equipped with Air Compressor)
Weight: 600KG
Dimension (L*W*H): 1200*900*1900mm
