Fiber Optic PLC Splitter
Click image to view original image
Price: Negotiable
Min.Order:
Supply
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2021-12-08 21:14
Hits: 31068
Enquiry
Company Detail


Details

Product Description

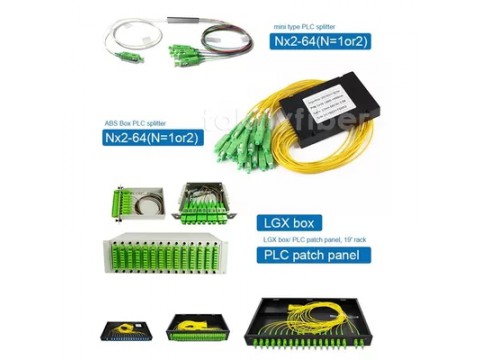

                                              Mini Type Single Mode PLC Splitter Bare Fiber PLC splitter with SC/APC Connectors





Mini Single Mode Fiber Splitter Bare Fiber PLC Splitter SC/APC Co<em></em>nnectors 0











Fiber Optic PLC Splitter Description:



Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. JINZE provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. The following are our main PLC types:




Fiber Optic PLC Splitter Feature:



*Good uniformity and low insertion loss
*Low polarization dependent loss
*Excellent environmental stability
*Excellent mechanical construction
*Compact design, suitable for installation in optical equipment
*Wide operating temperature:-40~85 ℃
*High reliability and stability






Fiber Optic PLC Splitter Applications:



Optical Signal Distribution

Data Communications

Lan and CATV System

FTTX Deployment

Passive Optical Networks (PON)

Measuring System and Laser System











Fiber Optic PLC Splitter  Specification:



Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade) 4.0/3.8 7.3/7.0 10.5/10.2 13.7/13.5 16.9/16.5 21.0/20.5
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) (S/P Grade) 50/55 50/55 50/55 50/55 50/55 50/55
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40~85 °C)(dB) 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Packaging Dimension (mm) (L×W×H) 40×4×4 40×4×4 40×4×4 40×4×4 50×7×4 60×12×4
