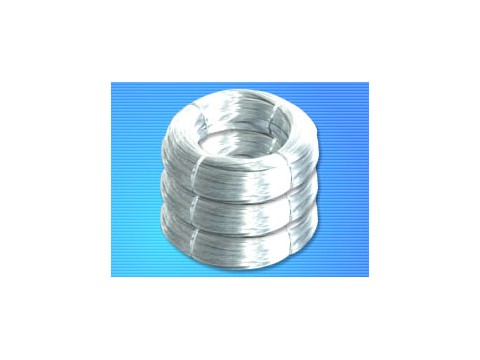

Zinc Plated / Hot-dip Galvanized Iron Wire

Click image to view original image
Price: Negotiable
Min.Order:
Supply
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2021-12-27 18:18
Hits: 25881
Enquiry
Company Detail


Details

Hot-dip galvanized iron wire is made with choice low carbon steel wire, through wire drawing, acid washing and rust removing, annealing and coiling.

Size range: BWG 8-BWG 22
Zinc coat: 45-180g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%

Galvanized wire hot dipped galv. is mainly used in construction, handicrafts, woven wire mesh, express way fencing mesh, packaging, binding and other daily uses.

Thermal Zinc Plated ( Hot Dipped ) Galvanized Wire

Thermal zinc coating refers to a galvanizing process of zinc coating by putting the wire into melt zinc pool to achieve the corrosion protection layer on the wire surface. Galvanized wires thus produced are also known as Hot Dipped Galvanized Wires. Hot-dip zinc-plated and electro galvanized iron wire are our primary wire products. The common sizes applied for electro galvanized wire and hot-dip galvanized wire are from BWG8# to BWG16#. Wire with smaller diameter or bigger one also available for customer choice.

Processing of Hot-dip Galvanized Wire:
Firstlin produces good quality hot-dip galvanized iron wire from choice low carbon steel wire, through the process of wire drawing, acid washing and rust removing, annealing and coiling.

Features:
Hot-dip galvanized wire we produce offers excellent flexibility and softness. The zinc coating can be 100g/m2, 200g/m2 and 300g/m2.
Single coil package for hot-dip galvanized iron wire can be different from 10 kg to 1000 kg.
Custom orders for hot-dip galvanized wire also available.

Application:
This kind of wire with zinc coating protection find varied uses for weaving of galvanized wire mesh, galvanized hardware cloth, welded iron wire mesh, expressway fencing mesh, reinforcing and binding in construction, packaging of products and other daily uses.

Hot dipped galvanized iron wire is called hot dip galvanized wire, hot dipped galvanized steel wire, hot dipped galvanized wire also. Galvanized iron wire is made of Low carbon steel wire Q195.
BWG8-16  5.0MM-1.6MM
Zinc coat: 40-300g/m2
Tensile strength: 40-85kg/mm2
Packing: 10-800kg/coil plastic inside and hassian outside// weave outside.
Hot dipped Galvanized Steel wire of Power Cable Amouring
Coating: Zinc coated, galvanised
Dia.meter: 5.0MM-0.8MM
Min zincing weight: 40 g/m2
Standard: BS or ASTM
Packing: coil and pallet
Optional Information
- HS Code : 7217200000 Wire of Iron or Non-alloy Steel
- Payment : L/C or T/T
- Delivery : Tianjin port
- Origin : China
- Minimum Order : 20 Ton
Specification: BS1442/BS443




Size

0.9mm

1.25mm

1.6mm

2.0mm

2.5mm

3.15mm

Diameter range (mm)

+/-0.025

+/-0.035

+/-0.045

+/-0.05

+/-0.065

+/-0.08

Tensile strength (N/mm2)


                         340-500

Elongation (%)

7.5

                       10

Min. Zinc Coating (g/m2)

155

180

195

215

245

255

DC resistence (ohms/km)

216.92

112.45

68.64

43.93

28.11

17.71

Torsion Test (min. Turn)

33

24

37

30

24

19
