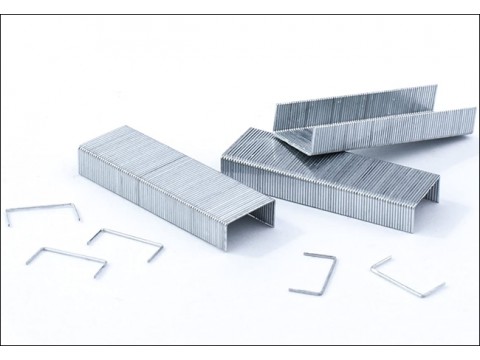

Packing: 2 kg spool, each spool pp warping.; cartoon box. international seaworthy packing.Staple wire, another name of stitching wire, can be supplied in a wide range of sizes. Following is the details tech table list with Gauge, Inch, Spool, Coating and Tensile Strength.
|
|
| Staple Wire on pallet | Hot Dipped Galvanised Iron Staple Wire with Safe Packaging |
| STAPLE WIRE SPECIFICATION | ||||||
| GAUGE | SIZE INCHES | Size mm | TENSILE STRENGTH | N/mm2 | COATING | SPOOL |
| 24G | 0.0236 | 0.60 | 130-160 | 896-1103 | Flash Galv | MP100 |
| 23G | 0.0256 | 0.65 | 125-160 | 962-1103 | Flash Galv | MP100 |
| 22G | 0.0285 | 0.72 | 120-150 | 827-1034 | Flash Galv | MP100 |
| 21G | 0.0314 | 0.80 | 110-145 | 758-1000 | Flash Galv | MP100 |
| 20G | 0.0354 | 0.90 | 110-145 | 758-1000 | Flash Galv | MP100/1000lb |
| 19 1/2G | 0.39 | 9.91 | 105-140 | 724-965 | Flash Galv | MP100 |
| 19G | 0.0409 | 1.04 | 100-130 | 689-896 | Flash Galv | MP100/600lb/1000lb |
| 18G | 0.047 | 1.19 | 95-130 | 655-896 | Flash Galv | mp100/600lb/1000lb |
| 16G | 0.0622 | 1.58 | 90-120 | 620-827 | Flash Galv | 600lb |
| 15G | 0.072 | 1.83 | 90-120 | 620-827 | Flash Galv | MP100/600lb |
| 14G | 0.08 | 2.03 | 90-120 | 620-827 | Flash Galv | MP100/600 lb/Coils |
| 13G | 0.0915 | 2.32 | 90-120 | 620-827 | Flash Galv | MP100/600 lb/Coils |
| 12G | 0.1055 | 2.68 | 90-120 | 620-827 | Flash Galv | MP100/600 lb/Coils |
| 11G | 0.1205 | 3.06 | 90-120 | 620-827 | Flash Galv | mp100/600 lb/coils |
| 10G | 0.135 | 3.43 | 90-120 | 620-827 | Flash Galv | mp100/600 lb/coils |
