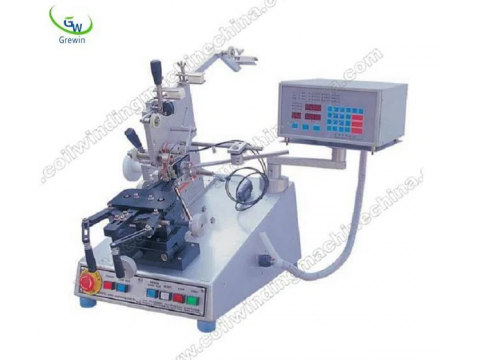

NAME：GW-9020B Digital Stepping Motor Coil Winding Machine
SPECIFICATION:
GW-9020B
|
Wire Size |
0.05-1.1mm |
Max Speed |
1500rpm |
|
Min.Finished I.D. |
3mm(will be different by shuttle size and coil height) |
O.D.Range |
8-60mm |
|
Winding Motor |
1/2HP DC motor |
Weight |
70kgs |
|
Spreading Motor |
Stepping Motor |
Dimension |
600*620*550mm |
|
Memory Capacity |
999 sequences |
Power source |
AC 220V/110V(50/60MHz) |
|
Min.wire size |
According to the machine head and shuttle size |
||
GW-9020B-B4 Specification
|
Wire Size |
0.12-0.8mm |
Max Speed |
1500rpm |
|
Min.Finished I.D. |
3mm |
O.D.Range |
5-60mm |
|
Winding Motor |
1/2HP DC motor |
Weight |
70kgs |
|
Spreading Motor |
Stepping Motor |
Dimension |
600*620*550mm |
|
Memory Capacity |
999 sequences |
Power source |
AC 220V/110V(50/60MHz) |
|
Shuttle Type |
2.4,2.5,2.8,3.4,4.7,6.3,7.9,9.5 |
||
|
Min.wire size |
According to the machine head and shuttle size |
||
GW-9020B-B6 Specification
|
Wire Size |
0.25-1.1mm |
Max Speed |
1500rpm |
|
Min.Finished I.D. |
6mm |
O.D.Range |
8-60mm |
|
Winding Motor |
1/2HP DC motor |
Weight |
70kgs |
|
Spreading Motor |
Stepping Motor |
Dimension |
600*620*550mm |
|
Memory Capacity |
999 sequences |
Power source |
AC 220V/110V(50/60MHz) |
|
Shuttle Type |
4.7,6.3,7.9,9.5,12.7,15.6 |
||
|
Min.wire size |
According to the machine head and shuttle size |
||
GW-9020B-B8 Specification
|
Wire Size |
0.3-1.2mm |
Max Speed |
1500rpm |
|
Min.Finished I.D. |
12mm |
O.D.Range |
40-120mm |
|
Range Height |
80mm |
I.D. Shuttle |
220mm |
|
Winding Motor |
1/2HP DC motor |
Weight |
70kgs |
|
Spreading Motor |
Stepping Motor |
Dimension |
600*620*550mm |
|
Memory Capacity |
999 sequences |
Power source |
AC 220V/110V(50/60MHz) |
|
Shuttle Type |
8, 10, 12, 15, 17, 20 |
||
|
Min.wire size |
According to the machine head and shuttle size |
||
FEATURES:
Digital Stepping Motor Coil Winding Machine has Hi-tech shuttle for highest efficiency.
Digital Stepping Motor Coil Winding Machine has separate speed controls for loading and winding.
Digital Stepping Motor Coil Winding Machine has accurately count length of loading by limited-switch.
Accurately count turns of winding by photo-electricity sensor
Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle
Accurately wire spacing by programmable controller
Memory capacity accommodates 999 sequences of parameters with off-power memory retention for more than one year.
Automatic wire clamp and cut system, layer winding, material unloading and cleaning of the tool during each cycle.
Optional release agent dispensing to aid removal of the coil from the tooling.
Fine programmable pitch control enabling precise layer winding.
ADVANTAGES:
One year guarantee for whole machine
We can design and develop special machine based on your request
We can train customer how to operate and repair equipment
We supply full and quickly services when you use our products.
Corrosion resistant,High tensile strength,Easy to use
Optimum performance oriented
APPLICATION:
Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.
