Parabolic Trough Mirror CSP mirror Solar mirror for power plant and heat process
Click image to view original image
Brand: Sundhy
reflectivity： 94%+
FDx： within 6.9mm
Service life： 25 years
Price: 21.00USD/square met
Min.Order: 100 square met
Supply 10000000 square met
Delivery: Shipment within 15 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2022-09-06 10:13
Hits: 23490
Buy
Company Detail


Details

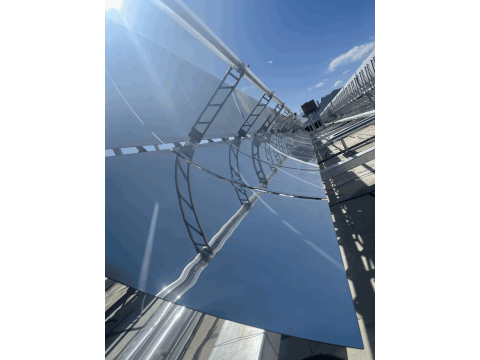

Parabolic trough mirror for CSP plant and CST steam process.


Dimension


Model Size（mm) Aperture(mm) Focal Length（mm) Application
RP3 Inner 1700*1641*4 5774 1710 CSP
Outer 1700*1501*4
RP5A Inner 1733*2010*4 7400 2000
Outer 1733*2010*4
RP6 Inner 1800*1600*4 8600 2300
Middle 1800*1600*4
Outer 1800*1565*4
RC4 1463*1356*4 2550 850 STE
RC3A 1463*1583.75*4 3000 950


Technical Parameter Requirement Remark
av. reflecticity ≥94% Air quality AM1.5, wavelength 300~2500mm
av. FDx ≤6.9mm QDEC test data
IC70 (laser) ≥99.95% QDEC test data
Anti-aging DLR、PSA tests passed
Life cycle >25 years
