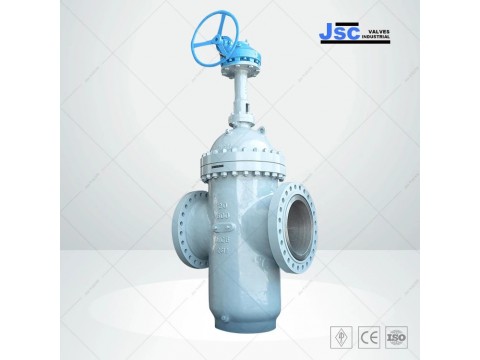

Our Carbon Steel Slab Gate Valve, sourced from China, adheres to the API 6D standard and is made from high-quality ASTM A216 WCB material. With a substantial size of 20 inches (DN500), this valve is suitable for Class 600 LB applications. It features a through-conduit design, ensuring a full bore and piggable operation. The gear operation mechanism provides efficient and precise control. Trust in the reliability of our Slab Gate Valve for your industrial needs, offering robust performance in demanding conditions.
Through-conduit gate valves are isolating valves designed for closing of the working media flow. They can be usedfor temperatures up to 200°C. If the gate valves are used forregulating or throttling purposes, the manufacturer does not guarantee the tightness. The gate valves are full-bore piggable valves with a flow resistance coefficient equal to that of the piping. Therefore the gate valves are suitable especially for long-distance pipeline systems.
Detail Information
Valve description: Slab gate valve, carbon steel, Double Block & Bleed, Full bore, piggable，Through conduit
Body material: ASTM A216 WCB
Gate: ASTM A515 Grade 70, ENP (Electroless Nickel Plating)
Nominal Diameter: 20 Inch
Nominal Class: Class 600 LB
Design / Manufacture: API 6D
Face to Face: ASME B16.10
Test and Inspection: API 598
End connection: RTJ
Mode of Operation: Gear Operation
