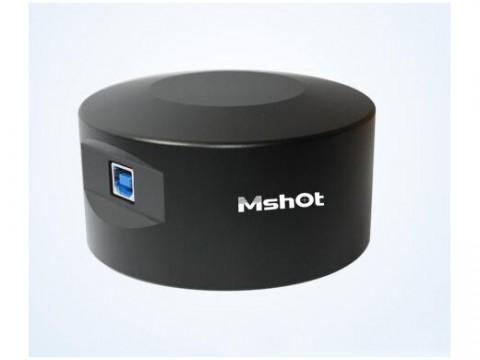

1.4MP CCD Camera MC20-N
High Sensitivity & Low Noise
MC20-N is a newly high quality microscope camera developed by Mshot. It adopts large array and high-performance CCD with images cache technique. Performance is comparable with cooling type CCD camera. MC20-N CCD camera has the advantages of low noise, high definition and good color. The transmission is stable and reliable. Connected with USB2.0 interface, plug and play, no extra capture device and power are needed.
- Support TWAIN and DirectShow interface, fully compatible.
- OS Windows XP(32 bit),Win7(32/64 bit)), Win8 (32/64 bit).
- MC20-N can be connected to bio-microscopes, fluorescence microscopes,
- It is an ideal product in the fields needed high quality images, such as micro imaging, fluorescent imaging, medical treatment, solar, science study and teaching research, etc.
Application Range:
- Microbiology
- TB diagnostic
- Bioscience
- GEL documentation
- Solar cell/EL detection
- FITC, FRET
- Bio- &Chemi- Luminescence
- Biochip reading
Parameters :
|
Item |
MC20-N (color) |
|
Sensor |
ICX285AQ |
|
Sensor size |
2/3" CCD color |
|
Effective pixels |
1360（H）*1024（V） |
|
Scanning mode |
Progressive scanning |
|
Resolution and frame rate |
1360*1024：20fps |
|
1280*720(ROI): 26fps |
|
|
680*512（SUM2-Mono）：38fps |
|
|
680*512（SUM2-Mono）：38fps |
|
|
340*256(SUM4- Mono) ：64fps |
|
|
Any size ROI |
|
|
Pixels Size |
6.45um*6.45um |
|
Sensor Active Size |
10.2mm*8.3mm |
|
Analog-digital conversion |
12bit |
|
Image data format |
8bit/12bit optional |
|
Sensitive |
1240mV-1/30s Accumulation |
|
Spectral response |
380nm-650nm (with IR-filter) |
|
Shutter Type |
Global Shutter |
|
Exposure time |
0.1ms-600s |
|
Acquisition methods |
Continuous output |
|
Exposure control |
Manual / Auto / regional exposure |
|
White balance |
Manual / time / area White Balance |
|
Product firmware update |
Support remote update |
|
Photo support format |
RAW、BMP、JPG、PNG |
|
Programmable control |
Camera work rate, image size, camera mode, image brightness, exposure time, gain, eliminate flicker, GAMMA, contrast, RGB gain, saturation, black balance, sharpness |
|
Operating system |
Windows XP(32 bit); Win7(32/64 bit) ; Win8(32/64 bit) |
|
Supporting connector |
TWAIN，Direct Show |
|
Data connector |
USB2.0 480Mb/s |
|
power dissipation |
Under 3W |
|
Supply |
USB5V Powered (no external power supply circuit) |
|
Operating temperature |
0℃~50℃ |
|
Storage temperature |
-20℃~60℃ |
|
Operating humidity |
10%-90%RH（No condensation ） |
|
Storage Humidity |
10%-60%RH |
|
Optical Interface |
C-Mount |
