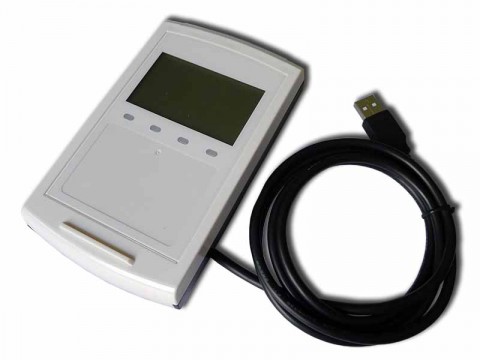

MR801 series desktop contactless IC card reader is based on NXP series RF chip with high performance ARM7 MCU. The communication is according to USB PC/SC standard. The reader fully supports the IC card according to ISO14443 standard, especially completely supports ISO14443-4 contactless CPU card.
The reader builds in 2 SAM slots, and fully supports SAM according to ISO7816.
Technical parameters
• PCD: NXP MF RC531
• Working frequency: 13.56MHz
• RF standard: ISO14443A, ISO14443B
• Operating distance: 100mm (MIFARE One, typical)
• SAM card slot: 2 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 230400bps)
• Display: 4 LED + LCD (128 * 64 pixel white back light)
• Buzzer: Build in
• RTC: Build in
• Data FLASH: 4 Mbytes (include font)
• Interface: USB PC/SC standard
• Power supply: DC5V ± 10%
• Power consumption: 0.9W
• Dimension: 142mm * 86mm * 22mm
• Weight: about 200g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• PC software: PCSC Communication Tool
• SDK: base on Windows, free
• Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
• ISP: Terms
• RoHS: Compliant
