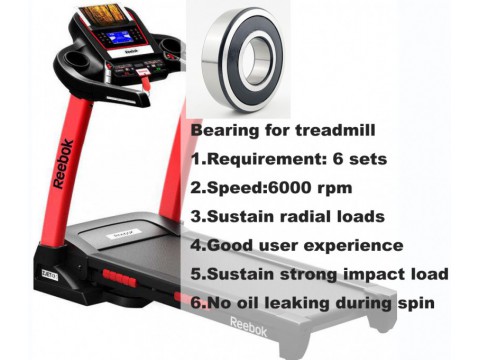

Bearing for treadmill 6203 2RS C3 P5 HG102（-40~200℃）
Click image to view original image
Price: Negotiable
Min.Order: 400
Supply
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: 2021-02-08 [Expired]
Updated on: 2020-02-09 18:23
Hits: 30541
Company Detail


Details







Technical Parameter
Axial clearance  C3 Max Speed 18,000 rpm
Bore diameter 17mm Operating temperature  -40℃～200℃
Outer diameter 40mm Dynamic load rating 9.57KN
Outer ring width 12mm Static load rating 4.79KN
Inner ring width 12mm Inner ring material GCr15
Minimum assembly chamfer 0.6mm Outer ring material GCr15
Net weight 0.065kg Steel ball material GCr15
Packing industrial package Retainer material SPCC
Packing number 400pcs Seal ring material NBR
