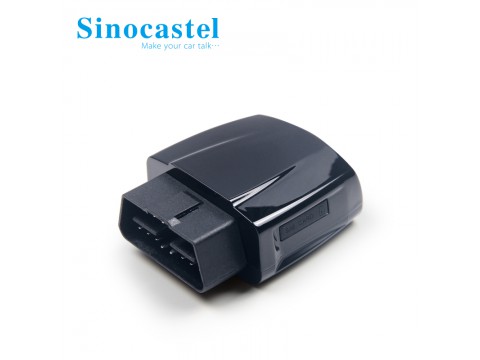

Click image to view original image
| Size | 63mm (L) x 50mm (W) x 26mm (H) |
| Weight | 50g |
| Interface |
OBD interface: 16 pin standard OBD II Configuration interface: Micro USB SIM card interface: Micro SIM, Push-Push Type |
| Data transmission | Packet data (GPRS/HSPA/LTE) and SMS |
| Positioning method | GPS |
| Storage | 8MB FLASH, up to 96,000 GPS data storage |
| OBD protocol |
ISO 9141-2 ISO 14230-4 ISO 15765-4 SAE J1939 SAE J1587/J1708 |
| Working Voltage | 9-36VDC |
| Working Current |
Max.: <200mA@13.8/27.6VDC Average: <150mA@13.8/27.6VDC Sleep mode: <10mA@12/24VDC |
| GPS |
Channels: 66 Sensitivity: -165dBm Accuracy: 5m CEP Time to first fix: Cold start: <30s (typ.) Hot start: <1s (typ.) |
| WiFi |
Frequency:2.4-2.4835GHz WLAN Standard:802.11b/g/n Transmission data: 65Mbps@802.11n 54Mbps@802.11g 11Mbps@802.11b |
| Cellular |
Frequency (IDD-213LC, China): FDD LTE B1/B3/B8 TDD LTE B38/B39/B40/B41 TD-SCDMA B34/B39 WCDMA/HSPA+ B1/B8 CDMA2000 1x/EVDO: BC0 GSM/GPRS 900/1800MHz Frequency (IDD-213LE, Europe): FDD LTE B1/B3/B5/B7/B8/B20 TDD LTE B38/B40/B41 WCDMA/HSPA+ B1/B5/B8 GSM/GPRS 900/1800MHz Frequency (IDD-213LA, US): FDD LTE B2/B4/B12 WCDMA/HSPA+ B2/B4/B5 Frequency (IDD-213LU,AU, South America) FDD LTE B1/B3/B4/B5/B7/B8/B28 TDD LTE B40 WCDMA/HSPA+ B1/B2/B5/B8 GSM/GPRS 850/900/1800/1900MHz data: LTE-FDD Max 150Mbps (DL) Max 50Mbps (UL) LTE-TDD Max 130Mbps (DL) Max 35Mbps (UL) HSPA+ Max 42Mbps (DL) Max 5.76Mbps (UL) Network protocol: Embedded TCP/IP stack |
| 6-axis IMU | Driving behavior detection |
| LED Indication | GPS/Cellular/OBD indication |
| Cellular Antenna | Internal |
| GPS Antenna | Internal |
| WiFi Antenna | Internal |
| Accessories |
OBD II extension cable 9-Pin deutsch wiring harness 6-Pin deutsch wiring harness Power cable |
| Working Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Humidity | 5%～95%（no fog） |
