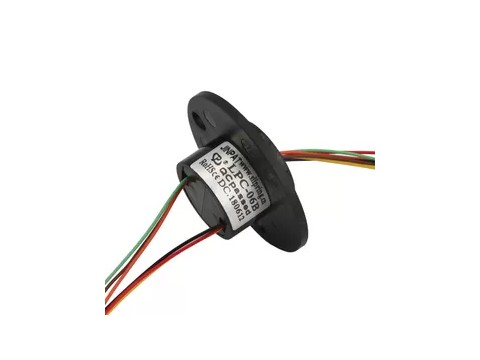

Click image to view original image
PRODUCT DEscriptION
The LPC-06B capsule slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.
The LPC-06B unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
LPC-06B Slip Ring parameter
| Protection Grade | IP54 |
| Working Speed | 300 RPM |
| Circuits | 6 |
| Current Rating | 2A Or higher |
| Voltage | 240VAC |
| Working Temperature | -40~+80℃ |
| Electric shock material | Gold to Gold |
| Wire specification | AWG28#, silver plated , UL |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Insulation | 1000MΩ@500VDC |
| Dielectric Strength | / |
| Electrical noise | / |
LPC-06B Slip Ring Main Application
- Electric devices
- Motor equipment
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment
LPC-06B Slip Ring Main Application
- Monitoring
- Electrical testing equipment
- Military rotary table
- Robotics
- Medical equipment
- Rotating platform
- Displaying and demonstrating equipment
- Instruments and meters
- LED industry
LPC-06B Slip Ring Features
- High life
- Very low contact resistance
- Compatible with data bus protocol
- Smooth operation and high stability
- Low torque
- Various types of data signals
- Compact structure
LPC-06B Slip Ring Outline Drawing
Product Image
