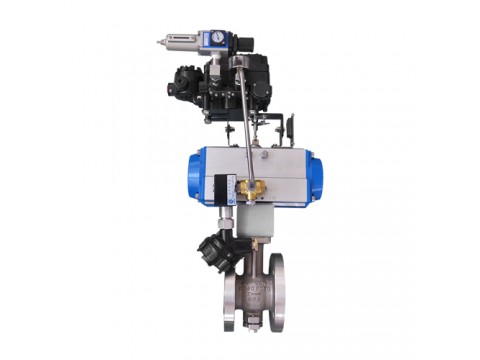

V Notch Ball Valve is an angular stroke control valve with V-shaped opening on the spool, which has a strong shearing effect on the sealed seat during the spool rotation, in addition to the valve has a large adjustment ratio. Especially suitable for control systems requiring large adjustment ratios and control of fluids containing fibers and slurries. So far, more than 2000 sets of applications have been achieved in the paper, food, chemical, fine chemical and other industries.
Performance advantages
Spool and stem spline connection, good alignment and stability, small torque loss, avoid dead zone, high adjustment accuracy.
Double bearing fixed upper and lower valve stem, good self-lubrication, stable spool operation, valve action is not easy to bite.
The valve seat adopts waveform spring preload, self-compensating seal, good sealing performance, modular design, adapt to high and low temperature online replacement.
The valve seat adopts elongated design, the flow path of the upper cavity of the valve body is fully protected from scouring, which improves the service life of the valve.
Soft seal vice elastic compensation floating type design, relying on medium pressure to improve the sealing specific pressure, reliable sealing.
Easy installation and disassembly, easy maintenance.
Seat leakage: hard seal V-shaped ball valve conforms to ANSI B16.104 Class V; soft seal V-shaped ball valve conforms to ANSI B16.104 Class VI.
SUPCON is a v notch ball control valve manufacturer and solution supplier in China, Our automation products and solutions are applied in over 35 countries and regions worldwide.
