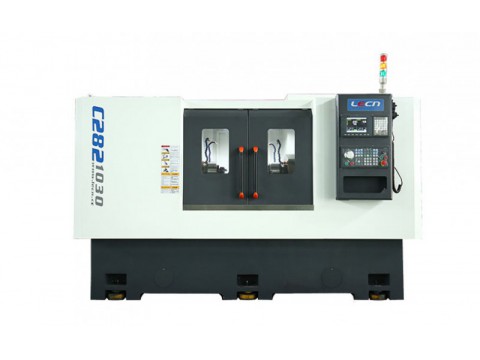

Both ends of the one clamping are processed at the same time, the joint cross machine with 100-300 mm workpiece length is suitable for milling face, turning outer circle and drilling center hole of joint cross, or boring and drilling center hole of link lock. High coaxiality, high efficiency, it can carry with truss or joint robot and automatical line.
Technical Parameters
|
ITEM |
CZ821030 |
TZ820510 |
|
Clamping Diameter Scope, mm |
Ø15-Ø60 |
- |
|
Boring Diameter Scope, mm |
- |
Ø25-Ø50 |
|
Workpiece Length Scope, mm |
100-300 |
100 |
|
Expangding Travel, mm |
20 |
- |
