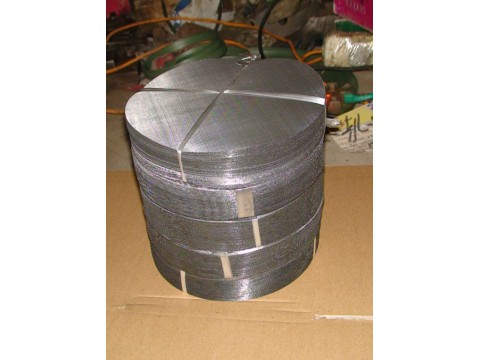

Black Wire Cloth Filter Disc with Uniform Holes
Black wire cloth filter disc, also named iron wire mesh filter disc or black wire mesh filter disc, is one type of the metal filter discs. Black wire cloth filter disc is made of low carbon steel and its weaving type includes plain weave, twill weave and dutch weave. With superior quality, black wire mesh filter discs are widely used in rubber industry, plastic industry, oil industry, grain industry, etc.
Specification
- Filter material: low carbon steel.
- Wire diameters: 0.12 - 0.60 mm.
- Discs diameters: 10 mm - 580 mm.
- Disc shapes: round, ring, rectangular, oval, crescent, semicircle, etc.
- Weaving types: plain weave, twill weave, dutch weave, etc.
- Filter disc layer: single layer or multiple layers.
- Marginal materials: copper, aluminum, stainless steel, rubber, etc.
BFD-1: Twill weave black wire cloth filter disc.
BFD-2: Dutch weave black wire cloth filter disc.
BFD-3: Spot welding edge black wire cloth filter disc.
BFD-4: Wrapping edge black wire cloth filter disc.
BFD-5: Black wire cloth filter disc can be produced with different sizes.
BFD-6: The shape of black wire cloth filter disc: round, ring, rectangular, oval, crescent, semicircle, etc.
| Specification of 3' × 100' black wire cloth | |||||
| Item | Mesh | Wire diameter (mm) | Mesh weight (kg) | ||
| BWCFD01 | 18 × 18 | 0.45 | 50.8 | ||
| BWCFD02 | 20 × 20 | 0.35 | 34.1 | ||
| BWCFD03 | 22 × 22 | 0.30 | 27 | ||
| BWCFD04 | 24 × 24 | 0.33 | 36.4 | ||
| BWCFD05 | 26 × 26 | 0.33 | 39.4 | ||
| BWCFD06 | 28 × 28 | 0.30 | 35.1 | ||
| BWCFD07 | 30 × 30 | 0.30 | 37.6 | ||
| BWCFD08 | 32 × 32 | 0.20 | 17.8 | ||
| BWCFD09 | 34 × 34 | 0.22 | 22.9 | ||
| BWCFD10 | 36 × 36 | 0.22 | 24.2 | ||
| BWCFD11 | 38 × 38 | 0.22 | 25.6 | ||
| BWCFD12 | 40 × 40 | 0.20 | 22.3 | ||
| BWCFD13 | 42 × 42 | 0.17 | 16.9 | ||
| BWCFD14 | 44 × 44 | 0.17 | 17.7 | ||
| BWCFD15 | 46 × 46 | 0.17 | 18.5 | ||
| BWCFD16 | 48 × 48 | 0.17 | 19.3 | ||
| BWCFD17 | 50 × 50 | 0.17 | 20.1 | ||
| BWCFD18 | 56 × 56 | 0.17 | 22.5 | ||
| BWCFD19 | 60 × 60 | 0.17 | 24.2 | ||
Features
- Withstand high temperature and harsh conditions.
- Uniform mesh holes.
- Neat and flat mesh surface.
- Long service life.
Black wire cloth filter discs, the same as stainless steel filter discs and sintered filter discs, are mainly used in chemical industry, medicine, machinery, metallurgy, plastic industry, rubber industry, industrial filtration, petroleum filtration, grain industry filtration, etc.
