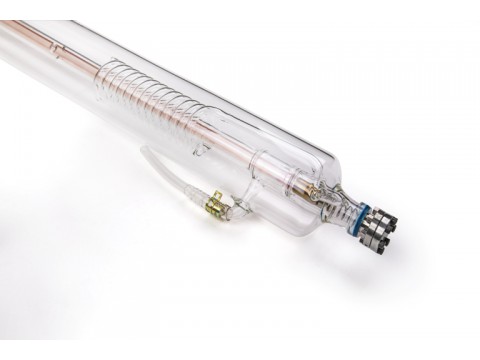

Laser specifications Laser Tube only
Model H80
Output Power( Rated Power/Max Power)(W) 80W/100W
Pointing Stability(mrad) less than 0.1
Typical Power Stablilty(±% after warm up) 5
Maximum Strike Voltage(KV) 40
Rated Operating Current-Absolute max.(mA) 30 go to32
Dynamic Range Positive high voltage
Electrical Requirements 6compare to1
Single Phase 110V-60Hz(A) 7
230V-50Hz(A) 4
Water cooling (W) 650
Cooling (l/min)(de-ionized water) 3.6
Dia(mm) 80
L(mm) 1280
Weight(kg) 5
Wrranty 12Months
Prics($) 364
