Application：
Medicine, food, daily chemical industry, agrochemical, hardware, architecture material industry, can also be customized according to requirements.
Technical Features：

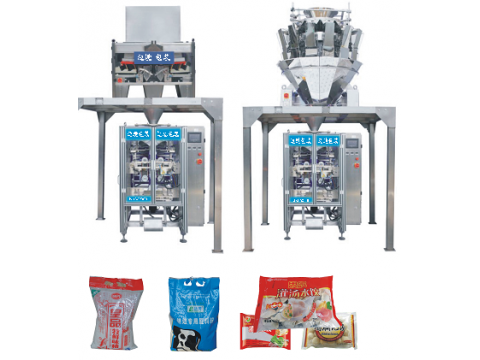

This machine consists of a 5000D/5000B/7300B/1100 vertical filling packaging machine, a combination scale（or CJS2000-F weighing machine）and DT2 vertical bucket elevator. It integrates the functions of metering, bag-making, edge-folding, filling, sealing, printing, punching and counting, synchronous belts are driven by servo motor and all components are well-known brand with reliable performances. Pneumatic system is used in horizontal and vertical sealing mechanism. Advanced design ensures that is very easy to adjust, operate and maintain the machine.
|
Model |
External Dimensions （L×W×H）mm |
Metering Range(g) |
Accuracy |
Capacity/min |
|
MAC5000D |
(50～280)×(70～180) |
10～1000 |
±0.2%～0.5% |
25～80 |
|
MAC5000B |
(50～340)×(80～250) |
100～2000 |
±0.2%～0.5% |
10～50 |
|
MAC7300B |
(50～460)×(80～350) |
500～5000 |
±0.2%～0.5% |
10～50 |
|
MAC1100 |
(300～650)×(300～535) |
5000～15000 |
±0.2%～0.5% |
10～50 |
