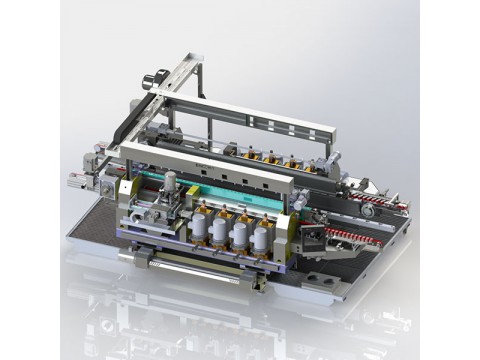

SYM12/08 DOUBLE ROUND EDGING MACHINE
Click image to view original image
Brand: enkong
Price: Negotiable
Min.Order:
Supply
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2018-05-11 21:42
Hits: 47471
Enquiry
Company Detail


Details

General description

1. SYM12/08 Double Round Edging Machine is directed at round edge processing, typical apply in household appliances and photovoltaic panel processing.

2. Modularise design

3. Machine body and components especial stable design for low vibration processing and ensure on precision.

Option: Servo/ Pneumatic safety corner cutting, Low E deletion device

Technical Date

  • Number of Spindles: 8 or 12
  • Max. glass dimension: Up to 2500
  • Min. glass size: 150mm
  • Glass thickness: 3~12 mm
  • Working Speed: 0.5-15m/mins
  • Width adjustment Speed: 2 m/mins (optional:8m/mins)
  • Max. edge grinding: 1.5mm
  • Tolerance of the diagonal(1000x1000): ±0.5mm
  • Tolerance on the parallelism(mm): ±0.3mm
  • Total power: 24 KW
