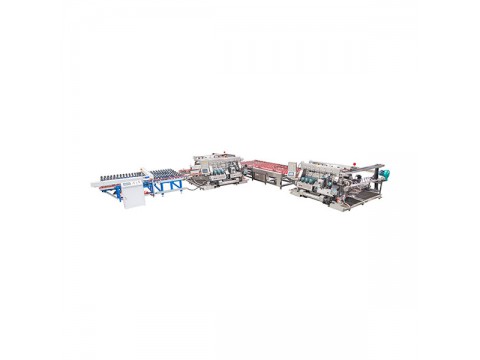

General description
Production speed of 0.5-18m / min.
Modularise design
The automatic detects the glass length and width dimensions
Comprehensive solution setting, suitable for construction and decorative glass with variable size
Option: Pneumatic safety corner cutting, Extra polish, Low E deletion device
Technical Date
- Number of Spindles: 10
- Max. glass dimension: Up to 2500
- Min. glass size: 300x 300mm
- Glass thickness: 3~12 mm
- Working Speed: 0.5-18 m/mins
- Width adjustment Speed: 8m/mins
- Max. edge grinding: 1 mm
- Tolerance of the diagonal(1000x1000): ±0.5mm
- Tolerance on the parallelism(mm): ±0.2mm
- Total power: 35 KW
