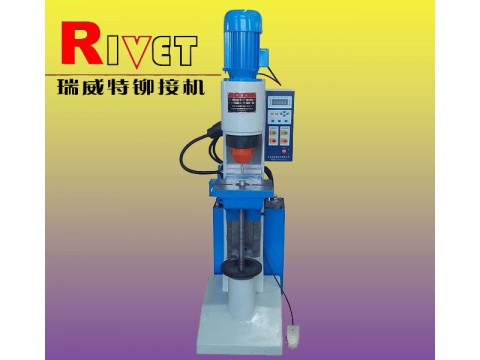

JM12 (Hydraulic radial riveting machine)
Characteristics:
■Medium sized vertical style
■Max. processing Dia.Φ12mm
■Hydraulic driven by stepless regulation
■Rotary part protected
■Large movable space of workbench
■Setting riveting time at will
■Can reserve hydraulic connector for jig
■Oil tank and fuselage can be separated
JM12
Scope of application: instrumentation, hardware, electronic products, automobile parts etc
Customized available
JM12 is a kind of medium sized radial riveting machine and hydraulic driven. The machine applied advanced orbital technology to performance rivets by cold forming, T-slot of workbench fixing clamping available and workbench adjustment up and down to meet variety of workpiece's body and shape's requirement. The fixture positioning hole is coaxial with spindle to ensure riveting process accuracy, electric control system equipped with counter and time relay to made the operation easy and simple. Hydraulic system equipped with throttle valve to control riveting pin speed effectively, and oil tank joint with fuselage or separated from fuselage as optional easy to transportation and move.
Specification:
▲Max riveting diameter Ф 12mm ( solid steel rivet )
▲Max riveting pressure 20Kn
▲Stroke 30mm
▲Available working space 340mm
▲Throat depth 160mm
▲Riveting tool length 50mm
▲Eccentric angle 4°
▲Motive force Hydraulic
▲Oil-tank volume 60 Liters
▲Pressure brand 46# (ISO)
▲Workbench dimensions 260mmx290mm
▲Power 1.3Kw
▲Physical size 730mm×500mm×1570mm
▲Net weight 350Kg
