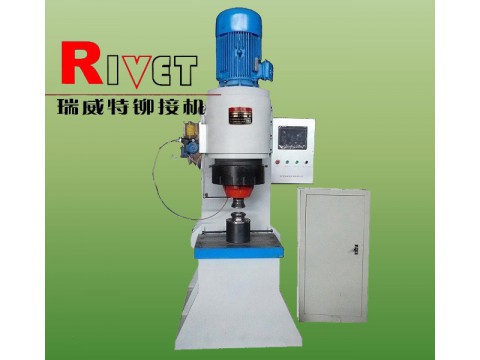

JM50-PLC (Heavy duty riveting machine)
Characteristics:
■Heavy duty riveting machine
■Max. riveting diameter Ф50mm
■Pressure by stepless regulation
■Stroke speed adjustable
■Hand button or foot-pedal as optional
■Rotary parts protected
■Set riveting time as will
JM50-PLC
Scope of applications : The daily hardware, automobile parts, mine-machinery etc.
Customized available
The model of JM50 is a kind of heavy duty riveting machine to meet large rivet diameter's requirement, the hydraulic driven ,the machine is more stable and perfect processing result due to by advanced radial technology. The workbench adjustment up and down to meet varies of workpiece's body and shape's requirement, T-slot fixing clamping apparatus available, Hydraulic system equipped with throttle valve to control stroke speed effectively. Positioning hole is coaxial with spindle to ensure riveting accuracy at ±0.02mm.
Specification:
▲Max. riveting diamete Ф 50mm ( solid steel rivet )
▲Max. riveting pressure 200Kn
▲Pressure system output 2.5MPa
▲Stroke Length Range 40mm
▲Available working space 380 mm
▲Throat depth 325 mm
▲Riveting tool length 62mm
▲Spindle eccentricity 4º
▲Motive force Hydraulic
▲Oil-tank volume 140 Liters
▲Pressure oil brand 46 # (ISO)
▲Dimension of workbench 510 mm×680 mm
▲Power 6.4Kw
▲Physical size 1185 mm×1000 mm×2400 mm
▲Net weight 4000Kg
