Locking pliers riveting machine JM20,Hydraulic riveting machine, Radial rvieting machine

Click image to view original image
Brand: Rivet
Origin: China
Force: Hydraulic
Structurer: Desktop
Price: Negotiable
Min.Order: 1 Sets
Supply 100000 Sets
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2019-10-09 13:34
Hits: 34715
Enquiry
Company Detail


Details

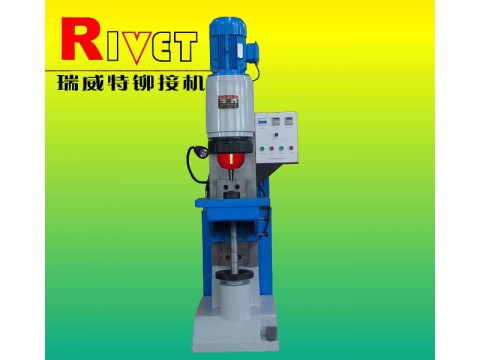

JM20(Radial riveting machine)

Characteristics:

Heavy duty vertical style

Max riveting diameter Ф 20mm

Workbench adjustable

Hydraulic driven by stelpless regulation

Rotary part proteced

Double-hand buttons or foot pedal as optional

Set riveting time as will

hydraulic riveter

JM20

Scope of application :Daily hardware, electrinic products, building fastener,  automobile parts etc.

Customized available

JM20 machine is a heavy duty radial hydraulic riveting machine, besides the utilization of the fifth generation technology, the machine is also equipped with screw lift table (Stationary base part), the table has a trapezoidal groove clamps for the riveting die. The center of the working station is aligned with the spindle bore axis and it's used to better positioning the fixture. The riveting speed can be easily controlled with the installation of one-way valve oil.  The digital electronic control time relay and digital counters has been installed to ease the user control. Oil tank can be combined or disassembled with the machine for easy transportation and assembly. Riveting speed can be easily controlled by Fluid path-way valve. The workbench is equipped with long stroke screw lift system and made convenience for the adjustment of the machine. As a result of the above function and orbital design, the riveting operation goes with ease and the workpiece finishing is created smoothly.

locking pliers riveting machine

Specification:

Max. riveting diameter Ф 20mm (solid steel rivet )

Max. riveting pressure 65Kn

Stroke Length Range 30mm

Available work space 260mm

Throat depth 225mm

Riveting tool length 62mm

Eccentric angle

Motive force Hydraulic

Oil-tank volume 120 Liters

Pressure oil brand 46# ISO

Workbench dimensions 430mm×290mm

Power 4.4Kw

Physical size 1070mm×600mm×1930mm

Net weight 850Kg

vertical riveting machine
