Machine Parameter |
|
|
Stator height |
10mm-100mm (maximum height：120mm） |
|
Outside Diameter of stator |
<Φ 190mm |
|
Inside Diameter of stator |
>Φ30mm |
|
Lacing method |
slot by slot, or skip method, can be set on touch screen |
|
Lacing speed |
0.5s~0.7s/slot |
|
Input |
220V/50Hz |
|
Power |
1KW |
|
Dimension |
1200mm × 700mm × 1350mm |
|
Weight |
≈ 600kg |
|
WIND AUTOMATION |
|
|

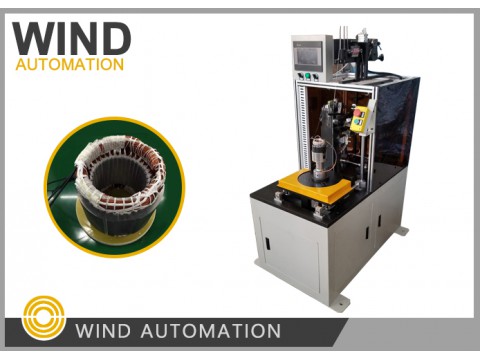

What is the Single-end stator lacer? BY twisting or braiding into a round or flat-tape shape. Twisted round lacing cord is the most popular and least expensive type. Tensile strength of the cord is determined by its diameter, the material it is made from, and the weaving technique used to make it. Most lacing cords are made from polyester, which shrinks when it is heated. The percentage of shrinkage may be specified from almost none up to about 15 percent. The higher-shrinkage cords tend to produce a tighter lacing when shrunk. |
|
|
Use of product The lacing holds the thermal protector, coil ends, and leads in the proper position. Lacing extends a motor’s life by preventing the wires in the coils from vibrating and causing fatigue failure during operation. |
|
|
Product advantages Stable quality. Neat and uniform binded coil stabilized quality output and increased product value. Improveing efficiency and reduced manpower costs. |
|
