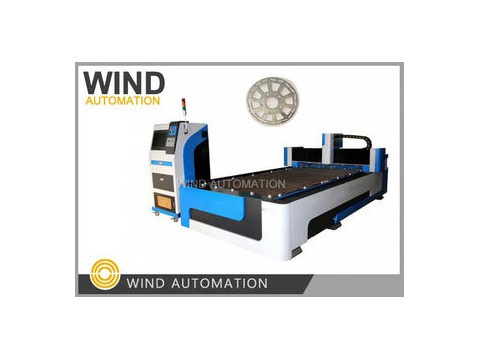

Click image to view original image
Material Handled by Cutting Machine :
Specially used for cutting a variety of medium and thin metal plates, high quality cutting 0.5~10mm carbon steel plate, 0.5~4mm stainless steel plate, cutting aluminum alloy plate, galvanized plate, electrolytic plate, silicon steel, titanium alloy, galvanized sheet, metal material etc.
Laser Cutting Machine Advantages
1. Low cost, low power consumption, can blow air to cut various metal sheets,
Production cost about 2.2USD~3.7USD/Hour
2. High cutting speed and efficiency, can cut 30 meters/Minutes
3. Good quality, small deformation, flat appearance and beautiful appearance handled
4. Servo motor and the guiding transmission mechanism ensure high cutting precision
5. With professional software, you can design all kinds of graphics or texts for instant
processing, flexible processing, simple and convenient operation.
6. High stability, using the world's top imported fiber laser, stable performance,
critical component life of up to 100,000 hours, laser maintenance-free.
7. Very low maintenance costs, no laser working gas, fiber transmission,
no need for reflective lenses, can save a lot of maintenance costs.
8. The product is easy to operate and maintain, and the optical fiber is transmitted
without adjusting the optical path.
Technical Data
| Technical Item | Technical Data |
| Laser wavelength | 1080nm |
| Maximum laser power | 500W |
| Pulse frequency | 1~500Hz continuously adjustable |
| Aiming positioning | Red light indicate |
| Work Table | 3000mm*1500mm |
| X/Y Axis repeat positioning accuracy | ±0.05mm |
| Support graphic format | DXF,etc.(Autou CAD,Coreldraw software) |
| Power consumption of the whole machine | ≤8KW |
| Power supply | 3 Phase 380V,50Hz,60A |
| Dimension(L×W×H) | 5000mm×2350mm×1800mm |
| Weight | 2800KG |
Cutting Data
| 500W Cutting Data | |||||
| Material | Thickness | Speed(m/min) | Pressure(MPA) | Gas | Cutting height |
| Stainless steel | 0.5 | >18 | 1 | N2 | 0.6 |
| 1 | 8.4~12 | >1.1 | N2 | 0.6 | |
| 2 | 1.8~2.4 | >1.8 | N2 | 0.6 | |
| 3 | 0.84~1.2 | >2.0 | N3 | 0.6 | |
| Carbon steel | 1 | 8.4~12 | 1 | O2 | 1 |
| 2 | 3~4.2 | 0.6~0.8 | O2 | 1 | |
| 3 | 1.5~2.1 | 0.25~0.4 | O2 | 1 | |
| 4 | 1.2~1.5 | 0.15~0.2 | O2 | 1 | |
| 5 | 0.9~1.2 | 0.15~0.2 | O2 | 1 | |
| 6 | 0.72~0.96 | 0.1~0.2 | O2 | 1 | |
