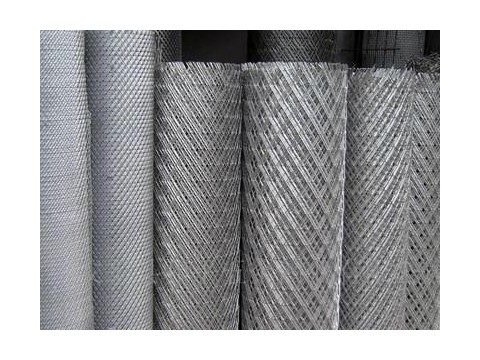

1. Product description
Materials: aluminum plate, aluminum magnesium alloy plate.
Specification:
LWD: 3mm~20mm;
SWD: 2mm~12mm;
Plate thickness: 0.3mm~1.0mm;
Strand width: 0.5-1.2mm
Range of roll length: 1m~20m;
Roll width: 10mm~1250mm。
Width: maximum up to 1.5M
Hole shape: Diamond hole ,square hole,scale hole
Surface treatment & tech: baking varnish, anodic oxidation,PVC / powder coated,pvdf,
Characteristics: Light-duty, corrosion resistance,beautiful and long service life
Packing: In roll, water proof paper inside and then put into wooden case; Sheet, water proof paper inside and then on iron pallet.
2. Product table
| Aluminum Expanded metal | ||||||
| Thickness | Nominal size of mesh | Standard size | Weight | |||
| SWD | LWD | Strand width | LWM | SWM | ||
| D | TL | TB | b | B | L | kg/㎡ |
| 0.5 | 3 | 6 | 1000 | 2000 | ||
| 3.2 | 8 | 1000 | 2000 | |||
| 5 | 10 | 1000 | 2000 | |||
| 6 | 12.5 | 1000 | 2000 | |||
| 7 | 14 | 1000 | 2000 | |||
| 8 | 16 | 1000 | 2000 | |||
| 9 | 20 | 1000 | 2000 | |||
3. Features &Applications
Can be used in exhibition hall, hotel, airport, railway station and other public places ,featured buildings as well, such as ceiling, rolling shutter, window screen, filter tube. or front decoration. The mesh is also suitable for installation in wide public buildings or small area of local decoration.Because its natural metallic luster effect a kind of launch action with the different changes of light between the metal mesh,creating a variety of changes of visual effects. Which fully reflect the designer's creativity.They can also be used in the building's facade, partition, ceiling, awning, balcony and corridors, pillar surface decoration, shutter, stair access and hotel, office, exhibition hall, shops and other high-end interior decoration.
