1. Product Description

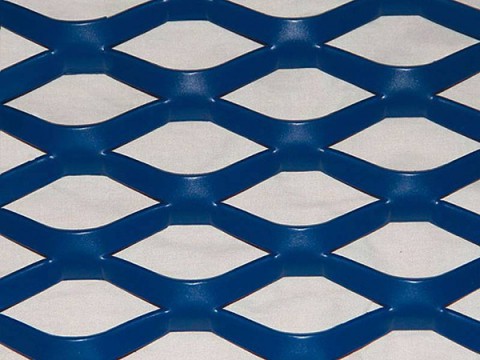

Aluminum expanded metal facade mesh is formed from a piece of metal and creating different shaped holes in one step, such as diamond, hexagonal, square, etc. Aluminum expanded metal facade mesh is widely used in exterior facade of buildings. it with various colors has aesthetic appeal, so it is the best choice for decorating exterior facades.
2. Product Table
| Product name | Powder coated aluminium expanded metal |
| Material | Aluminum plate, Al-Mg alloy plate. |
| Spec |
Thickness:0.3-10mm; , 04mm—1.0mm 0.8mm—1.0mm 0.3mm—1.5mm 0.1mm—9mm Strand Width:0.5-30mm; 5-10mm, 5-15mm, 20-30mm LWD:3-300mm SWD:3-150mm |
| Mesh size |
1220*2440mm,1200*2400mm,1000*2000mm or customized Width: max 3m |
| Opening size | 0.5x1mm, 1x2mm, 1.25x2.5mm, 1.5x2.5mm, 1.6x3.2mm, 2x3mm, 3x4mm, 3*5mm, 3*6mm, 4*8mm, 5*10mm, 6*12mm, 8*16mm, 10*20mm, 12*25mm, 15*30mm 20x40mm 25x50mm 30x60mm 40x80mm 50x100mm, etc. |
| Hole shape | Diamond,square, hexagonal, round holes, triangle holes, scale, etc. |
| Surface treatment |
1. Spray paint, powder coating 2. Hot dipped galvanizing/ cold galvanizing 3. Anodized 4. Fluorocarbon spraying |
| Feature | Good appearance,High strength, Multicoloured, Anti-corrosive,Rainstorm or insolation won`t hurt, Portable, Easy for installation, Maintenance friendly,Strong carrying capacity, Good ventilation performance, etc. |
| Application | Covering screen,house decoration, handicraft production, high - grade speaker, ceiling, curtain wall, partition panel,etc |
| Packing |
Waterproof paper / cloth+on pallet In wooden case with waterproof paper In roll with woven bag |
3. Features of aluminum expanded metal facade
Corrosion resistance
Strong and durable
Attractive appearance
Lighter weight
Easy to install
Long service life
4. Application
(1). Aluminum expanded metal facade meshes are widely used for interior walls and exterior facades in large buildings, such as concert halls, exhibition halls,movie theater, hotels, villas, museums, opera houses, shopping malls and other high grade inside and outside decoration.
(2). used for ceilings,sun blinds, walkways, stairs, railings, steps, partitions, fences.
(3). Also can be used as noise barriers in highway, railway, subway.
