Multi-service access transmission platform

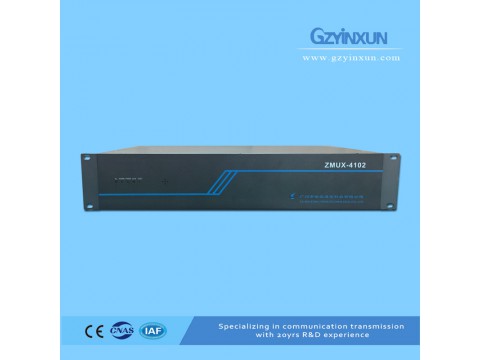

ZMUX-4102 consists of a chassis, power card, master cross card, and IO card. The chassis adopts a 2U high design, which mainly completes the signal interconnection between the power supply card, the main control cross card and the IO service card. There are 10 board slots, including 2 hot backup power card slots and 2 main control cross card and six IO service card. They are protected the working of power supply,main control circuit,transmission link,and service port to ensure the safe and reliable transmission of service signals.

* optional dual power input 1+1 protection, dual power card redundancy backup. The central office equipment and the remote equipment can provide two power cards with complete independent operation, main and spare backup protection.

* support real-time monitoring of the working status of the central device's and the remote device's built-in power card,also support real-time monitoring of the working state of an external Emerson switching power supply

* optional 2 master cross cards for 1+1 backup protection

* support wireless transmission such as satellite, wireless 4G, wireless microwave, wireless bridge

* support wired transmission such IP circuit, E1 circuit, fiber optic, STM-1/STM-4 line

* support dual-link or multi-link automatic protection switching, multiple protection modes are optional

* support FXO/FXS/HOT/MAG/4WEM/2WEM/ G.703 /RS232/ RS422/ RS485/ V.21/V.22/V.23/V.34/V.35/CAN/ADS-B radar/VHF/Synchronous radar data/Meteorological self-contained data/Transfer data/Weather radar data/Blind drop data etc.

*可以插入支持自检的测试信号，以验证通道的传输状态，并协助设备打开并便于维护。

*支持网络管理功能，可以自动加载整个网络的配置信息，并可以配置各种端口参数和自环检测功能。

*支持通过网络管理平台在线升级本地和远程设备的软件

ZMUX-4102是银讯公司自主研发的产品，我们已经大量出口到海外。它简单，稳定，可靠。我们支持ODM，OEM以及技术合作。
