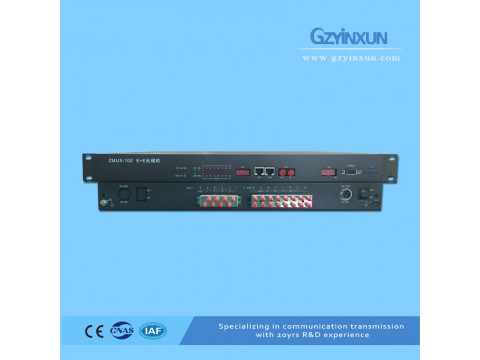

ZMUX-100 is designed as module,with 4*4E1 slots and 1 channel 100W Ethernet slot. It can provide up to 16channel E1 and 2 channel shared 100M Ethernet.
The ZMUX-100 has two DB37 connectors. Each DB37 connector can access 1~8channel E1 signals and provide 16channel E1 interfaces. It also has two RJ45 ports to complete 2 channel Ethernet access,2channel Ethernet share 100M
ZMUX-100 diagram
| Interface NO. | Interface Name | Instruction |
|---|---|---|
|
① |
link interface |
1 channle fiber interface, optional: single or daul fiber, single-mode or multimode, SC or FC, 40km or 80km or 100km. |
|
② |
User interface |
8 channels E1 interface (2M interface) |
|
③ |
User interface |
4channels E1 interface (expandable to 8 channels ) |
|
④ |
User interface |
100M Ethernet interface (2 channels 100M sharing bandwidth) |
|
⑤ |
Dial switch |
8 bit dial switch, equipment function setting |
|
⑥ |
System indicator |
Equipment alarm indicator lights, running lights. |
|
⑦ |
Power supply interface and Switch |
-48V DC power supply plug (green), power switch (red). |
|
⑧ |
Ground terminal |
Equipment grounding |
* 19 inch 1U high chassis (mounted on 19 inch cabinet),weight is 4KG, 480mm (wide) x 44mm (high) * 210mm (deep)
* support FXO/FXS/HOT/MAG/4WEM/2WEM/ G.703 /RS232/ RS422/ RS485/ V.21/V.22/V.23/V.34/V.35/CAN/ADS-B radar/VHF/Synchronous radar data/Meteorological self-contained data/Transfer data/Weather radar data/Blind drop data etc.
* support dual fiber or single fiber
* support 4xE1,8xE1,12xE1,16xE1, also can support 2channel share 100M Ethernet
* support dual power supply 1+1 protection back up, central office equipment, remote equipment, each equipment can provide two completely independent working power cards, main and spare protection
* supports the real-time monitoring function of the working status of central office device's and the remote device's built-in power supply, and also supports the real-time monitoring function of the external Emerson switching power supply working state
* support network management function,can monitor the configuration information of the entire network, E1 link status,E1 protection status,and the user interface status
