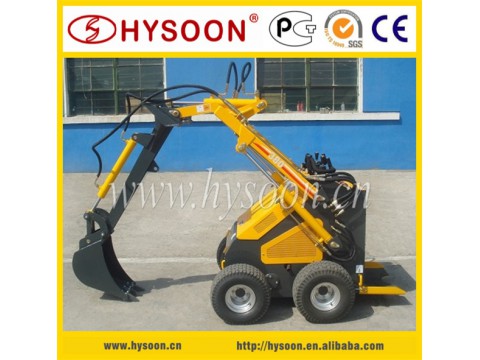

Dimensions
|
Item
|
With Chevron Engineering Tyre
|
|
| Max working height H1 | 2143mm | 84.37inch |
| Max dump height H2 | 1488mm | 58.58inch |
| Total Height H | 1233mm | 48.54inch |
| Max pin height | 1884mm | 74.17inch |
| The length of the foot plate | 678 mm | 26.7inch（foot plate level） |
| Total length with bucket L ( mm) | 2206mm | 86.9inch |
| Highest point dump distance L1（mm） | 348mm | 13.7inch |
| Length without bucket L2（mm） | 1752mm | 69inch |
| Bucket width B（mm） | 980mm | 38.6inch |
| Total width B1（mm） | 1160mm | 45.67nch |
| Wheel base | 940mm | 37inch |
| Ground clearance（mm） | 118mm | 4.65inch |
| Turning radius R（mm） | 1307 mm | 51.5inch |
| Bucket dumping angle α（°） | 30 | |
| Rollback of bucket on ground β（°） | 25 | |
| Departure angle（°） | 11（foot plate level） | |
Parameter
|
Item
|
Item
|
||||
|
Engin
|
Rated power（KW） | 15.4KW(21HP) | |||
| Rated speed（rpm） | 3300 | ||||
|
Noise （Db）
|
95 | ||||
|
Hydraulic system
|
Hydraulic pressure（Mpa） | 17 | |||
| Cycle time（s） |
Raise
|
Dump
|
lower
|
||
|
4.27
|
1.34
|
3.31
|
|||
|
Technical Parameter
|
Operating Load | 200 Kg | 441lb | ||
| Bucket Capacity | 0.15 m3 | 5.33（ft 3） | |||
| Max Lifting Force | 375 Kg | 827lb | |||
| Travel Speed | 0-5.5Km/h | 0-3.4mile/h | |||
| Operating Weight | 890 Kg | 1958lb(With Chevron Engineering Tyre ) | |||
|
Tires
|
18*6.5-8 | ||||
