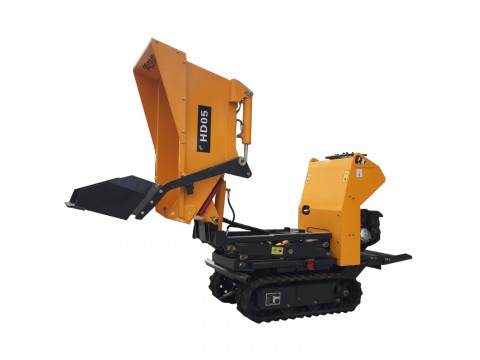

HD05 specification
|
Skip
Length
1150
Width
648
Height
515
Capacity
0.2 m3
Angle of dumping
57°/47°
Angle from the ground
10°
Engine
Fuel
petrol
Rated power
10Kw
rotating speed
3600r/min
Cylinder
1
Hydraulic system
Motor
Big torque motor
Double pump
Gear pump
System pressure
16MPa
System flow
12ml/min
Hydraulic oil tank capacity
19.4L
Body of machine
Operating weight
600kg
Load capacity
500kg
Fuel tank
5.5L
Speed
3.5km/h
