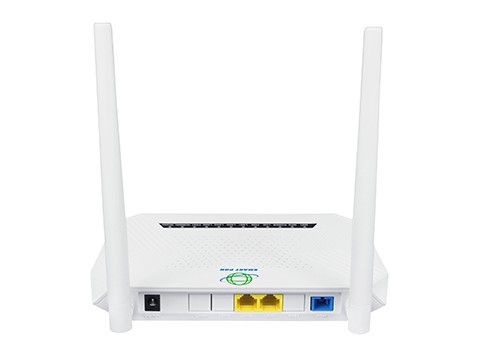

Model Number:SUR3108XR
Type:FTTx Solutions
Use:FTTH
Application:FTTH FTTB FTTX Network
Transmission Distance:20km
PON Interface:1 GPON BOB (Class B+/Class C+)
LAN Interface:1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE)
Wavelength:Tx1310nm, Rx1490nm
DC power supply:+12V,1A
Power Consumption:≤6W
Optical interface:SC/UPC Connector
Dimension:180mmx107mmx28mm(LxWxH)
Warranty:1 Year
1. Overview
* SUR3108XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides
different services access.
* SUR3108XR is based on mature and stable, cost-effective XPON technology.
* SUR3108XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the
technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4and IPv6 Dual mode
* Support 4G WIFIand 2*2 MIMO
* Support LAN IP and DHCP Server configuration
* Support Port Mappingand Loop-Detect
* Support Firewall function andACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
3. Application
* Typical Solution:FTTH(Fiber To The Home)
* Typical Business:INTERNET,IPTV,WIFI etc
Specifications
Hardware Specification
|
Technical item
|
Details
|
|
PON Interface
|
1 GPON BOB （Class B+/Class C+）
|
|
Receiving sensitivity: ≤-27dBm/≤-29dBm
|
|
|
Transmitting optical power:+0.5~+5dBm/+2~+7dBm
|
|
|
Transmission distance: 20KM
|
|
|
Wavelength
|
TX: 1310nm, RX: 1490nm
|
|
Optical Interface
|
SC/UPC Connector
|
|
Chip Spec
|
RTL9601D ,CPU 300MHz,DDR2 32MB
|
|
Flash
|
SPI Nor Flash 16MB
|
|
LAN Interface
|
1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector
|
|
LED
|
4 LED, For Status of PWR、LOS、PON、link/ACT
|
|
Push-Button
|
2,For Function of Power on/off,Reset
|
|
Operating Condition
|
Temperature: 0℃~+50℃
|
|
Humidity: 10%～90%（non-condensing）
|
|
|
Storing Condition
|
Temperature: -30℃~+60℃
|
|
Humidity: 10%~90%（non-condensing）
|
|
|
Power Supply
|
DC 12V/0.5A
|
|
Power Consumption
|
<3W
|
|
Dimension
|
120mmx78mmx30mm(L×W×H)
|
|
Net Weight
|
0.13Kg
|
